7' F01 750iX ECU, seat module, front/rear

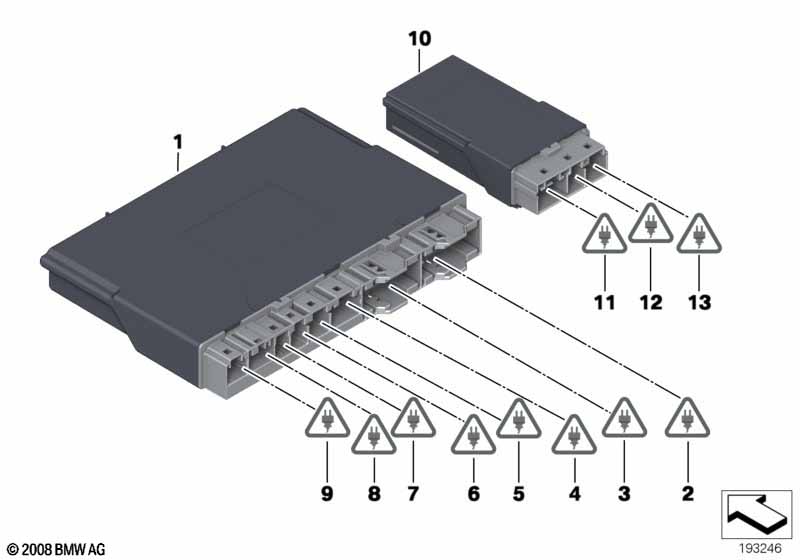

ECU, seat module, front/rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Comfort seat with memory

S456A=Yes
01 Seat module 1 03/2010 61359369126 ENDED
01 Seat module 1 03/2010 61357474966
01 Seat module 1 03/2010 61356993305 ENDED
01 Seat module 1 03/2010 61357943749 ENDED
01 Seat module 1 03/2010 61359459675
For vehicles with
Comfort seat, rear, electr. adjustable

S460A=Yes
01 Seat module 1 03/2010 61359369127 ENDED
For rear seats only
01 Seat module 1 03/2010 61357474967 ENDED
For rear seats only
01 Seat module 1 03/2010 61356993306 ENDED
For rear seats only
01 Seat module 1 03/2010 61357943750 ENDED
For rear seats only
01 Seat module 1 03/2010 61359459676
For rear seats only
For vehicles with
Comfort seat, rear, electr. adjustable
REAR SEAT

S460A=Yes
01 Seat module 1 09/2009 03/2010 61359369127 ENDED
01 Seat module 1 09/2009 03/2010 61357474967 ENDED
01 Seat module 1 09/2009 03/2010 61356993306 ENDED
01 Seat module 1 09/2009 03/2010 61357943750 ENDED
01 Seat module 1 09/2009 03/2010 61359459676
For vehicles with
Comfort seat, rear, electr. adjustable
REAR SEAT
Observe instructions in Repair
Manual REP-61 35 X01!

S460A=Yes
01 Seat module 1 09/2009 61359369127 ENDED
only in conjunction with
01 Seat module 1 09/2009 61357474967 ENDED
only in conjunction with
01 Seat module 1 09/2009 61356993306 ENDED
only in conjunction with
01 Seat module 1 09/2009 61357943750 ENDED
only in conjunction with
01 Seat module 1 09/2009 61359459676
only in conjunction with
-- Socket terminal MQS 0.2-0.35 MM²/SN 1 09/2009 61131383776 $0.28
-- Socket housing, uncloded 4 POL. 1 09/2009 61136901832 $1.58
-- Socket housing 5 POL. 1 09/2009 61136901842 $4.12
-- Socket contact ELO-Power 2,8x0,63 0,5-1,0 MM² 1 09/2009 61138364832 $0.35
-- Socket contact ELO-Power 2,8x0,63 1,5-2,5 MM² SN 1 09/2009 61138364834 $0.35
For vehicles with
Comfort seat with memory

S456A=No
01 Seat module 1 03/2010 61359369124 ENDED
01 Seat module 1 03/2010 61357474964 ENDED
01 Seat module 1 03/2010 61356993303 ENDED
01 Seat module 1 03/2010 61357943747 ENDED
01 Seat module 1 03/2010 61359459673
For vehicles with
Active seat for driver and passenger
and
Comfort seat with memory
Seat, front

S455A=No

S456A=No
01 Seat module 1 09/2009 03/2010 61359369127 ENDED
01 Seat module 1 09/2009 03/2010 61357474967 ENDED
01 Seat module 1 09/2009 03/2010 61356993306 ENDED
01 Seat module 1 09/2009 03/2010 61357943750 ENDED
01 Seat module 1 09/2009 03/2010 61359459676
For vehicles with
Active seat for driver and passenger
and
Comfort seat with memory
Seat, front
Observe instructions in Repair
Manual REP-61 35 X01!

S455A=No

S456A=No
01 Seat module 1 09/2009 61359369127 ENDED
only in conjunction with
01 Seat module 1 09/2009 61357474967 ENDED
only in conjunction with
01 Seat module 1 09/2009 61356993306 ENDED
only in conjunction with
01 Seat module 1 09/2009 61357943750 ENDED
only in conjunction with
01 Seat module 1 09/2009 61359459676
only in conjunction with
-- Socket terminal MQS 0.2-0.35 MM²/SN 1 09/2009 61131383776 $0.28
-- Socket housing, uncloded 4 POL. 1 09/2009 61136901832 $1.58
-- Socket housing 5 POL. 1 09/2009 61136901842 $4.12
-- Socket contact ELO-Power 2,8x0,63 0,5-1,0 MM² 1 09/2009 61138364832 $0.35
-- Socket contact ELO-Power 2,8x0,63 1,5-2,5 MM² SN 1 09/2009 61138364834 $0.35
For vehicles with
Active seat for driver and passenger
or
Comfort seat with memory
Seat, front

S455A=Yes

S456A=Yes
01 Seat module 1 09/2009 03/2010 61359313999
For vehicles with
Active seat for driver and passenger
or
Comfort seat with memory
Seat, front
Observe instructions in Repair
Manual REP-61 35 X01!

S455A=Yes

S456A=Yes
01 Seat module 1 09/2009 61359313999
only in conjunction with
-- Socket terminal MQS 0.2-0.35 MM²/SN 1 09/2009 61131383776 $0.28
-- Socket housing, uncloded 4 POL. 1 09/2009 61136901832 $1.58
-- Socket housing 5 POL. 1 09/2009 61136901842 $4.12
-- Socket contact ELO-Power 2,8x0,63 0,5-1,0 MM² 1 09/2009 61138364832 $0.35
-- Socket contact ELO-Power 2,8x0,63 1,5-2,5 MM² SN 1 09/2009 61138364834 $0.35
For vehicles with
Seat heating, rear
and
Comfort seat, rear, electr. adjustable
REAR SEAT

S496A=Yes

S460A=No
10 Seat module 1 11/2016 61359216468 ENDED
10 Seat module 1 61357490465
Notes
  • ENDED = the part has been discontinued (no longer available).
