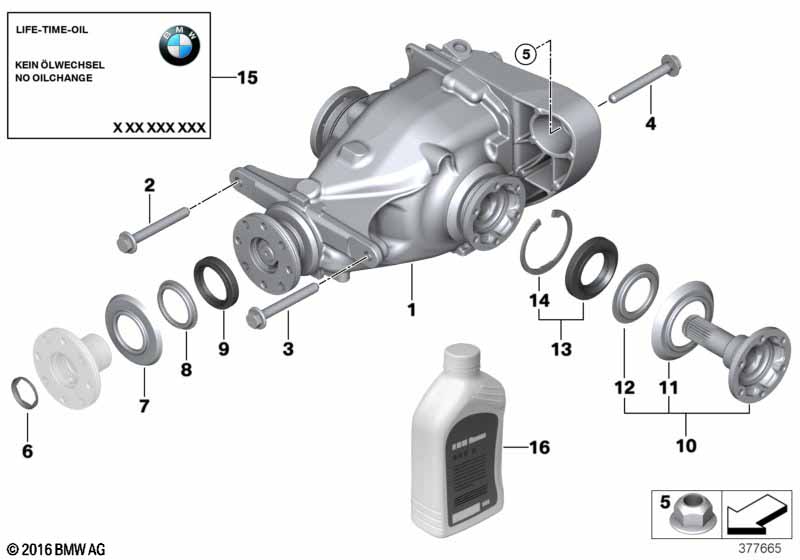

3' E92 LCI 320i Differential-drive/output

Differential-drive/output
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear-axle-drive I=40:11=3,64 1 33107519925
01 Exch. final drive I=3,64 1 10/2014 33107519926 ENDED
For vehicles with
Automatic transmission

S205A=Yes
01 Rear-axle-drive I=43:11=3,91 1 33107524325
02 Hex bolt with washer M12X1,5X100 1 33176760343 $2.05
03 Hex bolt with washer M12X1,5X100 1 33176760343 $2.05
04 Collar screw M14X1,5X112 1 01/2009 33306785433 $2.57
05 Combination nut M14X1,5-10ZNS3 1 33326760380 $2.48
06 Securing plate 1 23211490120 $1.43
Important! Drive flange and nut must
not be replaced.
07 dustcover plate, large 1 02/2011 33127523289 $1.33
07 dustcover plate, small 1 02/2011 33121213903 $1.30
08 dustcover plate, small 1 02/2011 33121428159 $1.25
09 Shaft seal 45X65X10 AW 186 1 33127621206
10 Drive flange output LK=80MM/M8 2 06/2014 33131428269 $88.09 ENDED
LK = bolt hole
10 Drive flange output VL-93 2 33131214751
only in conjunction with
-- Shaft seal with lock ring TYP 168 2 33107505603 $18.30
LK = bolt hole
11 dustcover plate, large 2 33131428161 $1.03
12 dustcover plate, small 2 33131428162 $0.89
13 Shaft seal with lock ring TYP 168 2 33107505603 $18.30
only in conjunction with
-- Assembly ring 2 31537502681 $9.98
14 Lock Ring D=22,4 2 33131214961 $0.29
15 Stick-on label DE, EN 1 01399791197 $4.25
16 BMW Synthetik OSP 1L X 07/2011 83222365987
Filling quantity, see Additional
Information
16 Hypoid axle oil G1 3 X 0,5L X 07/2011 83222295532
Filling quantity, see Additional
Information
Notes
  • ENDED = the part has been discontinued (no longer available).
