3' E92 LCI 320i Power brake unit depression

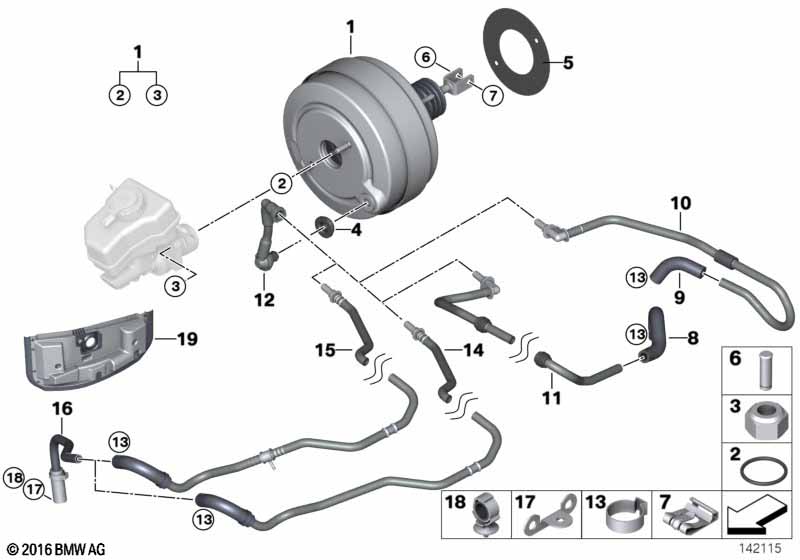

Power brake unit depression
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Brake servo unit 1 34336779718 $403.33
only in conjunction with
01 Brake servo unit 1 34332454368
only in conjunction with
-- Seal, brake booster 1 34336857618
-- Self-locking collar nut M8-10 ZNS3 2 07119905374
02 Brake master cylinder o-ring 1 34311160617 $4.32
03 Self-locking hex nut M8-8-ZNNI SI 2 07129906196 $1.60
04 Gasket 1 11/2018 34336765316 $5.53
04 Gasket 1 34336893085
05 Seal, brake booster 1 34336857618
06 Brake pedal pin D=10X29,5 1 34336753646 $1.67
07 Fuse B10-ZNS3 1 07129904567 $0.40
09 Hose 1 11667549507
10 Vacuum pipe 1 11667549506
12 Vacuum pipe 1 34337577337
13 Hose clamp 21,3MM 2 11151726339 $1.02
19 Bulkhead seal 1 34306769328 $6.25
