3' E92 LCI 320i Brake pipe, front

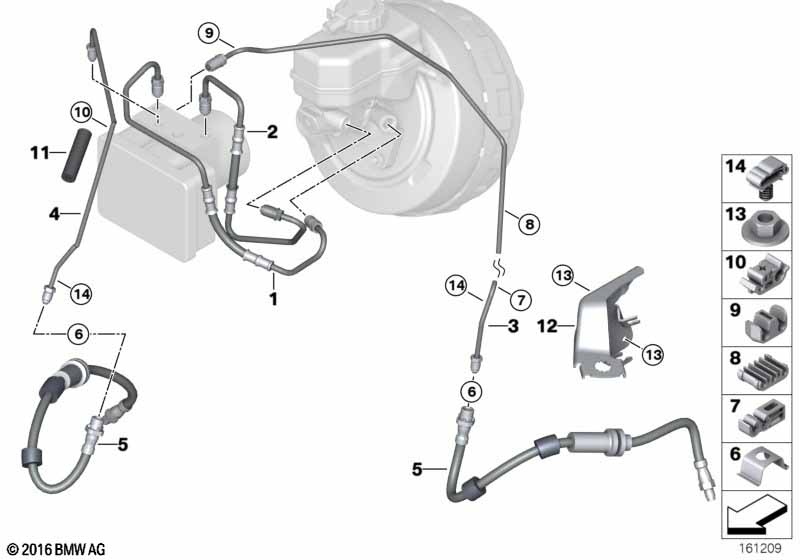

Brake pipe, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pipeline with pressure hose M12/M12 1 34326853513
02 Pipeline with pressure hose M12/M12 1 34326853514
03 Pipe M10/M12 1 07/2005 34326853505
04 Pipe M10/M10 1 07/2005 34326853507
05 Brake hose front 2 07/2005 34306790550
06 Clip 2 34341163565 $0.97
07 Wire clip, dual 1 07/2015 34306784201 $1.63
07 Wire clip, dual 1 07/2015 34326855501 ENDED
07 Wire clip, dual 1 34326871117
08 Brake pipe bracket 1 34321107992 $1.02
09 Spacer holder 1 07130519991 $0.38
10 Brake pipe bracket 1 34306767384 $0.70
11 Protective hose 1 34326769541
12 Holder, brake hose, left 1 07/2005 34306770483 $5.92
12 Holder, brake hose, right 1 07/2005 34306770484 $5.92
13 Hex nut BM6-8-ZNNIV SI 4 07/2005 07129905411 $0.38
14 Tubing support 2 34521164653 $0.23
Notes
  • ENDED = the part has been discontinued (no longer available).
