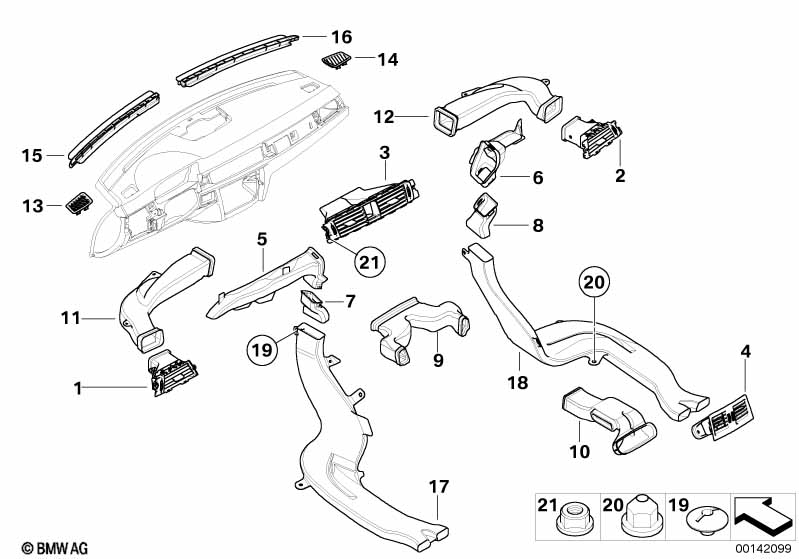

3' E92 LCI 320i Air duct

Air duct
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fresh air grille, left 1 64229130467 +core
02 Fresh air grille, right 1 64229130468 +core
03 Fresh air grille center 1 03/2007 64229130447 ENDED, +core
03 Fresh air grille center 1 03/2007 64229151176 ENDED, +core
03 Fresh air grille center 1 64229130469
For vehicles with
Automatic air conditioning

S534A=Yes
04 Fresh air grille rear room GRAU 1 64229131842 $80.70
05 Left floor heater duct 1 64227078189 $9.15
06 Right floor heater duct 1 64227078190 $9.15
07 Left floor heater duct 1 51457132867 $2.40
08 Right floor heater duct 1 51457132868 $2.40
09 Heater duct, rear, intermediate piece 1 64226968448 $18.75
10 Rear heater duct 1 09/2008 64227118051 $18.30
10 Rear heater duct 1 09/2008 64229171149
11 Cold air duct left 1 64227051373 $9.47
12 Cold air duct right 1 64227051374 $9.47
13 Cover, side window defroster, left 1 51457059215 $4.22
14 Cover, side window defroster, right 1 51457059216 $4.22
17 Heater duct rear left 1 51477058143 $10.00
18 Heater duct rear right 1 51477058144 $10.00
19 Clip H=15MM 2 51481924909 $0.42
20 Cap nut M5 3 51711934930 $0.23
21 Hex nut M5 2 63259128043 $0.72
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
