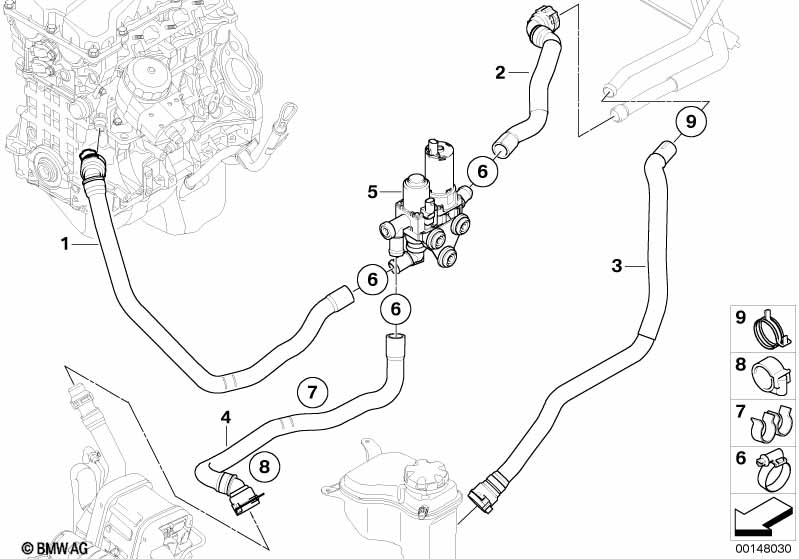

3' E92 LCI 320i Independent heating water valves

Independent heating water valves
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Auxiliary heating

S536A=Yes
01 Hose f engine inlet-changeover valve 1 64126953089
02 Hose f radiator-changeover valve 1 64126953090 $23.71
03 Hose f radiator and engine return 1 64216951946 $29.86
04 Hose, parking heater changeover valve 1 09/2006 64126953091
04 Hose, parking heater changeover valve 1 09/2006 64219111763
05 Changeover valve 1 64126951813
06 Hose clamp L16-30 3 64218367179 $1.07
07 Hose clamp 1 64216904030 $1.10
08 Hose clamp 2 64216930041 $0.55
09 Spring ring shell D=25MM 1 10/2006 64216921694 $2.48 ENDED
09 Spring ring shell D=25MM 1 64213405930
Notes
  • ENDED = the part has been discontinued (no longer available).
