3' E92 LCI 320i Individual side trim, all-leather

Individual side trim, all-leather
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Only applies to individual vehicles
with upholstery code Z1XX
----------------------------------
Important!
Series parts are not possible via this
order no.
.
Since individual vehicles are also
equipped with series parts, it is to be
assured that the spare part needed is
not a series part.
----------------------------------------
Specify when ordering:
.
Spare part for individual vehicle:
- part no.
- dealer no.
- chassis no.
.
Retrofit of an individual part:
- part. no.
- dealer no.
-chassis no.

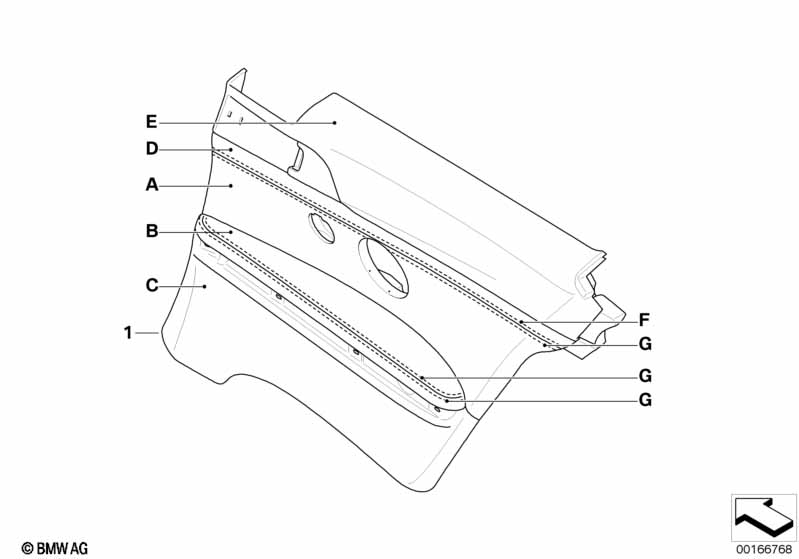

- (A) Part number leather Merino
(center)
- (B) Part number leather Merino
(armrest)
- (C) Part number leather Merino
(lower trim)
- (D) Part number leather Merino (cowl)
- (E) Part number leather Walknappa
Shrink-resistant (waist rail)
- (F) Velours (upper cowl cover)
- (G) Velours
---------------------------
Remaining door trim as LCSW
---------------------------
01 Lateral trim panel leather rear left INDIVIDUAL 1 07/2007 51437966991 +core, NoS
01 Lateral trim panel leather rear right INDIVIDUAL 1 07/2007 51437966992 +core, NoS
For vehicles with
Light package

S563A=Yes
01 Lateral trim panel leather rear left INDIVIDUAL 1 12/2006 51437966993 +core, NoS
01 Lateral trim panel leather rear right INDIVIDUAL 1 07/2007 51437966994 +core, NoS
For vehicles with
HiFi speaker system
or
HiFi System Professional DSP
or
Harman/Kardon Surround Sound system

S676A=Yes

S677A=Yes

S688A=Yes
01 Lateral trim panel leather rear left INDIVIDUAL 1 07/2007 51437966995 +core, NoS
01 Lateral trim panel leather rear right INDIVIDUAL 1 07/2007 51437966996 +core, NoS
For vehicles with
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system

S563A=Yes

S676A=Yes

S677A=No

S688A=No
01 Lateral trim panel leather rear left INDIVIDUAL 1 07/2007 51437966997 +core
01 Lateral trim panel leather rear right INDIVIDUAL 1 07/2007 51437966998 +core
For vehicles with
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system

S563A=Yes

S676A=No

S677A=Yes

S688A=No
01 Lateral trim panel leather rear left INDIVIDUAL 1 07/2007 51437966997 +core
01 Lateral trim panel leather rear right INDIVIDUAL 1 07/2007 51437966998 +core
For vehicles with
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system

S563A=Yes

S676A=No

S677A=No

S688A=Yes
01 Lateral trim panel leather rear left INDIVIDUAL 1 07/2007 51437966997 +core, NoS
01 Lateral trim panel leather rear right INDIVIDUAL 1 07/2007 51437966998 +core, NoS
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • NoS = No Stock (Part, central, not in stock.)
