3' E92 LCI M3 Wheelhouse/engine support

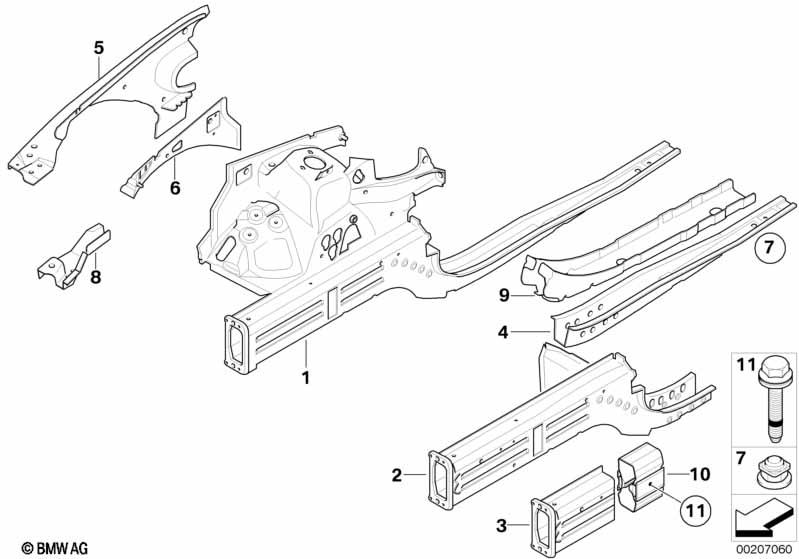

Wheelhouse/engine support
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Performed using adhesive bonding/
riveting repair method.
If necessary, with
Metal insert for spring mount
01 Front left wheelhouse BASIS 1 41147135609 $783.92
only in conjunction with
-- Blind rivet N1 41 83190301414 $1.98
Required for repair
-- Screw SF PLUS M5X15 2 83190301639 $0.31
Required for repair
-- Bodywork adhesive K1 195ML 1 83190413015 $244.89
Required for repair
-- Punch rivet N5 39 83192158079 $0.39
Required for repair
-- Cleaner R1 100ML 1 83192211217
Required for repair
-- Supporting strut,whl house, exterior lft BASIS 1 41217168979 $144.65
Required for repair
-- Seam sealer 300ML 2 83422409985
01 Wheelhousing, front right BASIS 1 41147135610 $783.92
only in conjunction with
-- Blind rivet N1 41 83190301414 $1.98
Required for repair
-- Screw SF PLUS M5X15 2 83190301639 $0.31
Required for repair
-- Bodywork adhesive K1 195ML 1 83190413015 $244.89
Required for repair
-- Punch rivet N5 39 83192158079 $0.39
Required for repair
-- Cleaner R1 100ML 1 83192211217
Required for repair
-- Supporting strut,whl house,exterior rght BASIS 1 41217168980 $144.65
Required for repair
-- Seam sealer 300ML 2 83422409985
01 Front left wheelhouse BASIS 1 41147135609 $783.92
only in conjunction with
-- Blind rivet N1 56 83190301414 $1.98
Required for repair
-- Screw SF PLUS M5X15 4 83190301639 $0.31
Required for repair
-- Bodywork adhesive K1 195ML 1 83190413015 $244.89
Required for repair
-- Punch rivet N5 39 83192158079 $0.39
Required for repair
-- Cleaner R1 100ML 1 83192211217
Required for repair
-- Supporting strut,whl house, exterior lft BASIS 1 41217168979 $144.65
Required for repair
-- Seam sealer 300ML 2 83422409985
01 Wheelhousing, front right BASIS 1 41147135610 $783.92
only in conjunction with
-- Blind rivet N1 56 83190301414 $1.98
Required for repair
-- Screw SF PLUS M5X15 4 83190301639 $0.31
Required for repair
-- Bodywork adhesive K1 195ML 1 83190413015 $244.89
Required for repair
-- Punch rivet N5 39 83192158079 $0.39
Required for repair
-- Cleaner R1 100ML 1 83192211217
Required for repair
-- Supporting strut,whl house,exterior rght BASIS 1 41217168980 $144.65
Required for repair
-- Seam sealer 300ML 2 83422409985
02 Front left engine support BASIS 1 41117135611 $282.32
Required for repair
02 Front right engine support BASIS 1 41117135612 $282.32
Required for repair
-- Seam sealer 300ML 1 83422409985
Performed using adhesive bonding/
riveting repair method.
03 Section of left engine support BASIS 1 41117135613 $194.30
Required for repair
03 Section of right engine support BASIS 1 41117135614 $194.30
Required for repair
-- Blind rivet N1 2 83190301414 $1.98
-- Blind rivet N2 10 83190301419 $1.98
-- Bodywork adhesive K1 195ML 1 83190413015 $244.89
-- Cleaner R1 100ML 1 83192211217
-- Repair element, engine subframe, upper 1 41117265820
-- Hex bolt M8X83 1 11137525546
04 Rear left engine support BASIS 1 41117135617 $60.90
04 Rear right engine support BASIS 1 41117135618 $60.90
Performed using adhesive bonding/
riveting repair method.
05 Supporting strut,whl house,exterior rght BASIS 1 41217168980 $144.65
only in conjunction with
-- Bracket side panel right 1 41218045824 $9.00
Required for repair
-- Bracket, brake booster 1 41008045821 $15.68
Required for repair
-- Blind rivet N1 2 83190301414 $1.98
-- Blind rivet N3 6 83190301421 $0.31
-- Punch rivet N5 12 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
05 Supporting strut,whl house, exterior lft BASIS 1 41217168979 $144.65
only in conjunction with
-- Bracket side panel left 1 41218045823 $9.00
Required for repair
-- Bracket, brake booster 1 41008045821 $15.68
Required for repair
-- Bracket, EDC sensor 1 41008045822 $15.76
Required for repair
-- Blind rivet N1 2 83190301414 $1.98
-- Blind rivet N3 6 83190301421 $0.31
-- Punch rivet N5 12 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
05 Supporting strut,whl house, exterior lft BASIS 1 41217168979 $144.65
only in conjunction with
-- Bracket side panel left 1 41218045823 $9.00
Required for repair
-- Bracket, phone antenna 1 41117179554 $6.25
Required for repair
-- Bracket, brake booster 1 41008045821 $15.68
Required for repair
-- Bracket, EDC sensor 1 41008045822 $15.76
Required for repair
-- Blind rivet N1 2 83190301414 $1.98
-- Blind rivet N3 6 83190301421 $0.31
-- Punch rivet N5 12 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217 EBA 2446652
06 Supporting strut,whl house, interior lft BASIS 1 41117135633 $58.94
06 Supporting strut,whl house,interior rght BASIS 1 41117135634 $58.94
07 Earth pin M8X12 X 07147182215
07 Earth pin M6X12 X 41118367249 $1.85 ENDED
07 Earth pin M6X12 X 41248185432
08 Extension, supporting strut left 1 41217145353 $34.45
08 Extension, supporting strut right 1 41217145354 $34.45
09 Crash reinforcement, left 1 41117135619 $60.90
09 Crash reinforcement, right 1 41117135620 $60.90
10 Repair element, engine subframe, upper 1 41117265820
11 Hex bolt M8X83 1 11137525546
Notes
  • EBA = Einbauanleitung (Installation instructions)
  • ENDED = the part has been discontinued (no longer available).
