3' E92 LCI M3 Splash wall parts

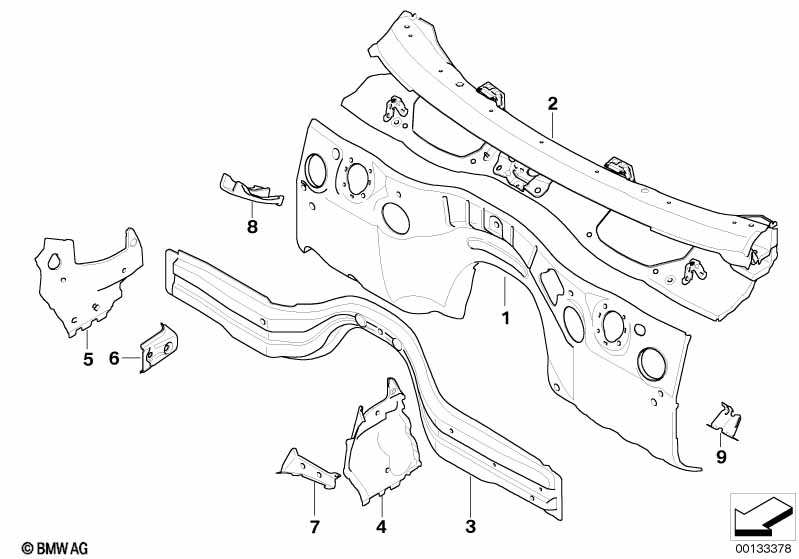

Splash wall parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Splash wall 1 41137152823 $596.73
only in conjunction with
-- Bracket for accelerator pedal module 1 41127157726 $3.23
-- Covering right 1 41117152824 $5.35
02 Lower apron 1 41137145309 $171.37
03 Supporting strut, front wall 1 41117135636 $187.52
04 Left engine compartment partition 1 41137135621 $15.22
05 Right engine compartment partition 1 41127135622 $15.22
06 Reinforcement for bulkhead 1 41217135623 $11.26
07 Cover panel, engine compartment, left 1 41217135629 $2.53
07 Cover panel, engine compartment, right 1 41217135630 $2.53
08 Covering right 1 41117152824 $5.35
09 Bracket for accelerator pedal module 1 41127157726 $3.23
