3' E92 LCI M3 Body-side frame

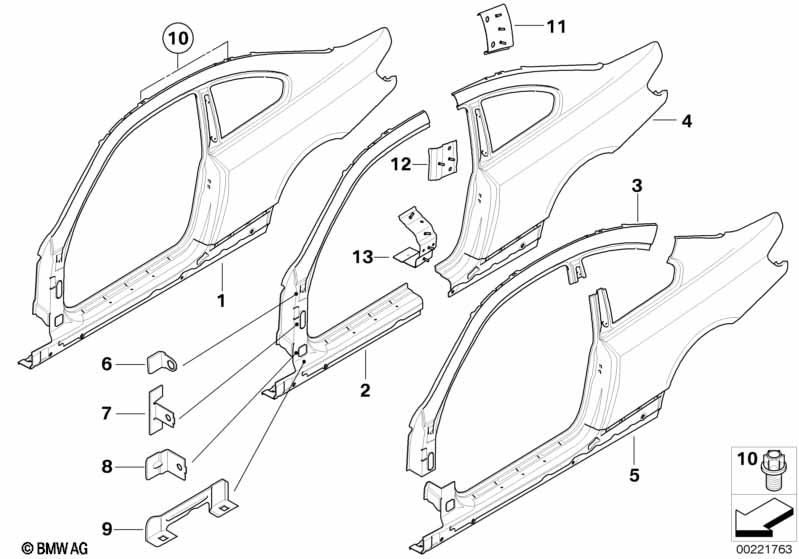

Body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Side frame, exterior, left 1 41008045847 $941.98
only in conjunction with
01 Side frame, exterior, right 1 41008045848 $941.98
only in conjunction with
-- Support, hinge, bottom left 1 41217191287 $7.52
Required for repair
-- Support, hinge, bottom right 1 41217191288 $7.52
Required for repair
-- Support, hinge, top left 1 41217191289 $7.52
Required for repair
-- Support, hinge, top right 1 41217191290 $7.52
Required for repair
-- Seam sealer 300ML 1 83422409985
02 Left exterior column A 1 41008045849 $603.43
only in conjunction with
02 Column A exterior right 1 41008045850 $603.43
only in conjunction with
-- Support, hinge, bottom left 1 41217191287 $7.52
Required for repair
-- Support, hinge, bottom right 1 41217191288 $7.52
Required for repair
-- Support, hinge, top left 1 41217191289 $7.52
Required for repair
-- Support, hinge, top right 1 41217191290 $7.52
Required for repair
-- Seam sealer 300ML 1 83422409985
03 Roof frame left 1 41007168969 $430.25
03 Right roof frame 1 41007168970 $430.25
Performed using adhesive bonding/
riveting repair method.
04 Left rear side panel 1 41008045851 $523.32
Required for repair
-- Blind rivet N3 17 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Punch rivet N4 38 83192457307
-- Plastic capnut with washer D=22MM 10 07147169847 $0.36
-- Reinforcement plate, rocker panel, left 1 41217275561
-- Reinforcement plate, B-pillar, left 1 41217275573
-- Reinforcement plate, C-pillar, left 1 41217275580
04 Right rear side panel 1 41008045852 $523.32
Required for repair
-- Blind rivet N3 17 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217 EBA 2446652
-- Punch rivet N4 38 83192457307
-- Plastic capnut with washer D=22MM 10 07147169847 $0.36
-- Reinforcement plate, rocker panel, right 1 41217275562
-- Reinforcement plate, B-pillar, right 1 41217275574
-- Reinforcement plate, C-pillar, right 1 41217275595
05 Column B with left rocker panel 1 06/2007 41008045853 $529.37 ENDED
05 Side frame, exterior, left 1 41008045847 $941.98
Required for repair
-- Seam sealer 300ML 1 83422409985
05 Column B with right rocker panel 1 06/2007 41008045854 $529.37 ENDED
05 Side frame, exterior, right 1 41008045848 $941.98
Required for repair
-- Seam sealer 300ML 1 83422409985
06 Bracket, side panel, top 2 41217168973 $3.32
07 Bracket, side panel, center 2 41217168975 $3.44
08 Bracket, side panel, bottom 2 41317187750 $3.63
09 Bracket, side panel, bottom left 1 41217168977 $3.45
09 Bracket, side panel, bottom right 1 41217168978 $3.23
Mounting for
Roof rack system
10 Star screw with internal threads M10 / M6 4 07147153767 $1.98
11 Reinforcement plate, C-pillar, left 1 41217275580
11 Reinforcement plate, C-pillar, right 1 41217275595
12 Reinforcement plate, B-pillar, left 1 41217275573
12 Reinforcement plate, B-pillar, right 1 41217275574
13 Reinforcement plate, rocker panel, left 1 41217275561
13 Reinforcement plate, rocker panel, right 1 41217275562
Notes
  • EBA = Einbauanleitung (Installation instructions)
  • ENDED = the part has been discontinued (no longer available).
