3' E92 LCI M3 Single components for body-side frame

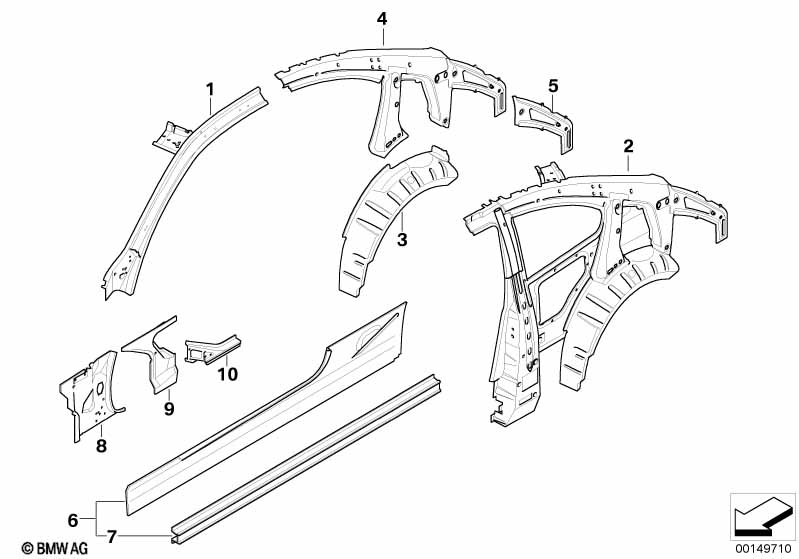

Single components for body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Connector, A-pillar/roof frame left 1 41217168951 $167.03
01 Connector, A-pillar/roof frame right 1 41217168952 $167.03
02 Left interior side frame 1 41008045855 $794.71
02 Right interior side frame 1 41008045856 $794.71
03 Wheel arch outer rear left 1 41008045857 $170.62
03 Wheel arch outer rear right 1 41008045858 $170.62
04 C-pillar reinforcement, left 1 41007168961 $111.35
04 C-pillar reinforcement, right 1 41007168962 $111.35
05 Tension band column C, left 1 41217144957 $5.37
05 Tension band column C, right 1 41217144958 $5.37
06 Left side member 1 41117168983 $280.62
06 Right side member 1 41117168984 $280.62
07 Top, side member, left 1 41117145341 $127.44
07 Top, side member, right 1 41117145342 $127.44
08 Left interior column A 1 41217145331 $110.58
08 Right interior column A 1 41217145332 $110.58
09 Connect.plate f.left side panel frame 1 41217145339 $40.22
09 Connect.plate f.right side panel frame 1 41217145340 $40.22
10 Reinforcement column A inside left 1 41217145333 $34.45
10 Reinforcement column A inside right 1 41217145334 $34.45
