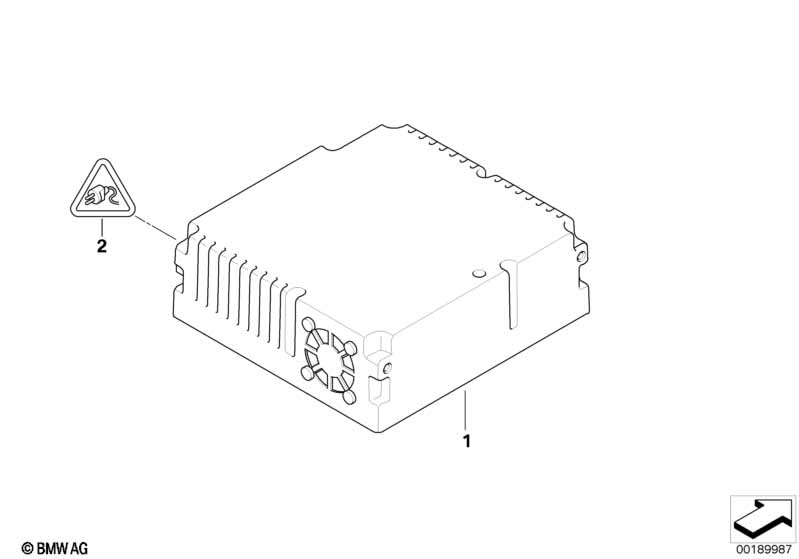

3' E92 LCI M3 Video module/TV module

Video module/TV module
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
National version Korea

L802A=Yes
01 TV module DVB-T 1 09/2009 03/2010 65509224301
01 TV module DVB-T 1 09/2009 09/2010 65509229906 ENDED
01 TV module DVB-T 1 09/2009 07/2012 65509240643
For vehicles with
National version japan

L807A=Yes
01 TV module ISDB-T 1 09/2009 03/2010 65509224302 ENDED
01 TV module ISDB-T 1 09/2009 09/2010 65509235503 ENDED
01 TV module ISDB-T 1 09/2009 07/2012 65509240645
01 TV module 1 07/2012 03/2013 65509290598 ENDED
01 TV module 1 07/2012 07/2013 65509291991 ENDED
01 TV module 1 07/2012 65509319561
For vehicles with
National version China

L8AAA=Yes
01 TV module DVB-T 1 09/2009 03/2010 65509224301
01 TV module DVB-T 1 09/2009 09/2010 65509229906 ENDED
01 TV module DTMB 1 09/2010 03/2011 65509242221 ENDED
01 TV module DTMB 1 09/2010 09/2011 65509252352 ENDED
01 TV module DTMB 1 09/2010 03/2012 65509253523 ENDED
01 TV module DTMB 1 09/2010 65509273513
For vehicles with
National version Korea
and
TV function, analog

L802A=Yes

S6FSA=No
01 TV module TV-MODUL2 1 07/2012 03/2013 65509287634 ENDED
01 TV module TV-MODUL2 1 07/2012 07/2013 65509300242 ENDED
01 TV module TV-MODUL2 1 07/2012 65509319559
For vehicles with
National version Korea
and
TV function, analog

L802A=Yes

S6FSA=Yes
01 TV module DVB-T 1 07/2012 65509240643
For vehicles with
TV function
and
National version China
and
National version Korea
and
National version japan
and
On-board monitor with TV

S601A=Yes

L8AAA=No

L802A=No

L807A=No

S602A=No
01 TV module DVB-T 1 09/2009 03/2010 65509224301
01 TV module DVB-T 1 09/2009 09/2010 65509229906 ENDED
01 TV module DVB-T 1 09/2009 07/2012 65509240643
For vehicles with
TV function
and
National version China
and
National version Korea
and
National version japan
and
On-board monitor with TV

S601A=No

L8AAA=No

L802A=No

L807A=No

S602A=Yes
01 TV module DVB-T 1 09/2009 03/2010 65509224301
01 TV module DVB-T 1 09/2009 09/2010 65509229906 ENDED
01 TV module DVB-T 1 09/2009 07/2012 65509240643
For vehicles with
National version Korea
and
National version japan
and
National version China
and
TV function
and
On-board monitor with TV
and
TV function, analog

L802A=No

L807A=No

L8AAA=No

S601A=Yes

S602A=No

S6FSA=No
01 TV module TV-MODUL2 1 07/2012 03/2013 65509287634 ENDED
01 TV module TV-MODUL2 1 07/2012 07/2013 65509300242 ENDED
01 TV module TV-MODUL2 1 07/2012 65509319559
For vehicles with
National version Korea
and
National version japan
and
National version China
and
TV function
and
On-board monitor with TV
and
TV function, analog

L802A=No

L807A=No

L8AAA=No

S601A=No

S602A=Yes

S6FSA=No
01 TV module TV-MODUL2 1 07/2012 03/2013 65509287634 ENDED
01 TV module TV-MODUL2 1 07/2012 07/2013 65509300242 ENDED
01 TV module TV-MODUL2 1 07/2012 65509319559 EBA 2357862
For vehicles with
National version Korea
and
National version japan
and
National version China
and
TV function
and
On-board monitor with TV
and
TV function, analog

L802A=No

L807A=No

L8AAA=No

S601A=Yes

S602A=No

S6FSA=Yes
01 TV module DVB-T 1 07/2012 65509240643
For vehicles with
National version Korea
and
National version japan
and
National version China
and
TV function
and
On-board monitor with TV
and
TV function, analog

L802A=No

L807A=No

L8AAA=No

S601A=No

S602A=Yes

S6FSA=Yes
01 TV module DVB-T 1 07/2012 65509240643
02 Socket housing 20 POL. 1 61136901848 $3.20
only in conjunction with
-- Covering cap 1 61136905196 $3.92
-- Envelope f optical waveguide 2POL. /SCHWARZ 1 61138387214 $1.83
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
