3' E92 LCI M3 On-board monitor

On-board monitor

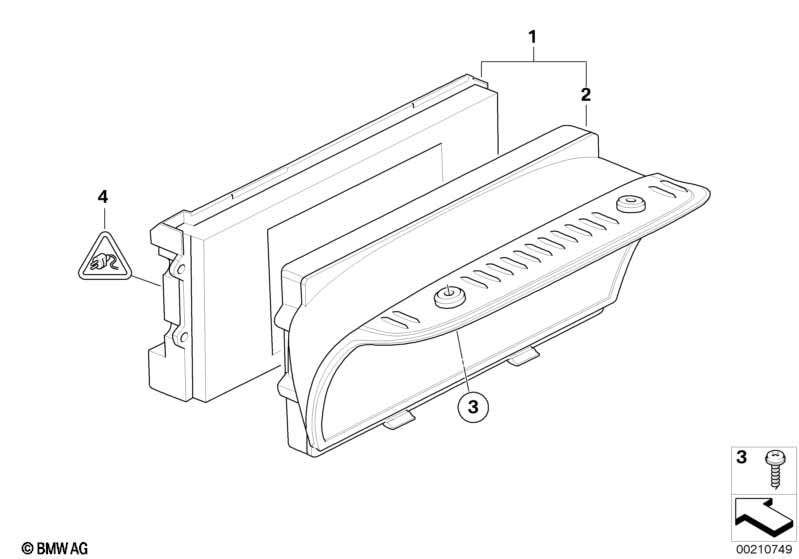

No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Navigation system Business
or
Radio driver circuit, M Drive

S606A=Yes

S8TAA=Yes
01 AT-On-board monitor 6,5" HIGH RESOLUTION 1 09/2009 65829224348
For vehicles with
TV function
or
On-board monitor with TV
or
Navigation system Professional

S601A=Yes

S602A=Yes

S609A=Yes
01 AT-On-board monitor 8,8" HIGH RESOLUTION 1 09/2008 09/2009 65829193755 $1828.14 ENDED
01 AT-On-board monitor 8,8" HIGH RESOLUTION 1 09/2008 65829224346 $1828.14
01 On-board monitor 8,8" HIGH RESOLUTION 1 09/2009 65829211969
For vehicles with
National version japan
and
TV function
and
On-board monitor with TV
and
Navigation system Professional

L807A=Yes

S601A=Yes

S602A=No

S609A=Yes
01 AT-On-board monitor 8,8" HR JAPAN 1 09/2009 65829224347
For vehicles with
National version japan
and
TV function
and
On-board monitor with TV
and
Navigation system Professional

L807A=Yes

S601A=Yes

S602A=No

S609A=No
01 AT-On-board monitor 8,8" HR JAPAN 1 09/2009 65829224347
For vehicles with
National version japan
and
TV function
and
On-board monitor with TV
and
Navigation system Professional

L807A=Yes

S601A=No

S602A=Yes

S609A=No
01 AT-On-board monitor 8,8" HR JAPAN 1 09/2009 65829224347
For vehicles with
National version japan
and
TV function
and
On-board monitor with TV
and
Navigation system Professional

L807A=Yes

S601A=No

S602A=No

S609A=Yes
01 AT-On-board monitor 8,8" HR JAPAN 1 09/2009 65829224347
For vehicles with
Navigation system Business

S606A=Yes
02 Trim cover, onboard monitor 6.5" 1 09/2009 65829226387
For vehicles with
On-board monitor with TV
or
Navigation system Professional

S602A=Yes

S609A=Yes
02 Cover, onboard monitor 8.8" 1 09/2009 65829226386
03 Fillister head self-tapping screw 2 07147133553 $0.16
04 Universal socket housing uncoded 8 POL. 1 09/2009 61136954526 $3.12
only in conjunction with
-- Terminal socket MQS ELA 0.2-0.5 MM² SN X 09/2009 61131393704 $0.23
-- Terminal socket MQS ELA 0,5-0,75 MM² AG 12 09/2009 61136931880
Notes
  • ENDED = the part has been discontinued (no longer available).
