3' E92 LCI M3 Car Infotainment Computer - Mid

Car Infotainment Computer - Mid

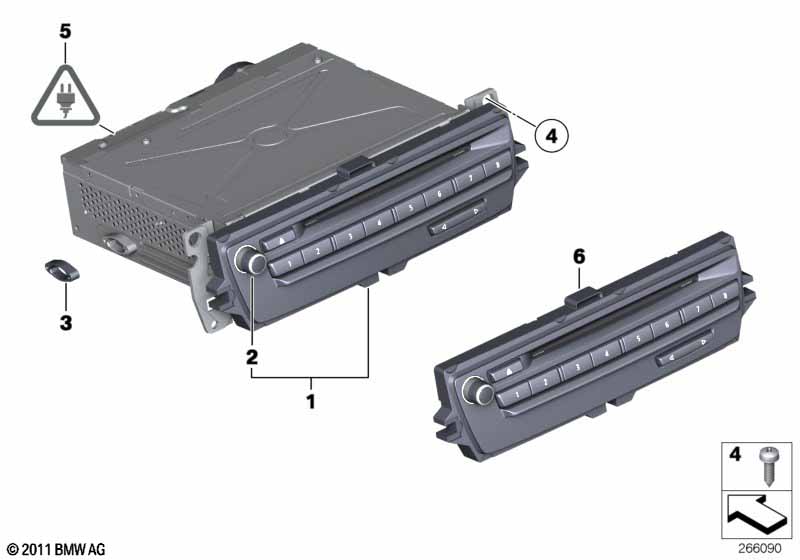

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice!
The system automatically requests
the repair enable codes during the
programming routine. As an alternative,
it is possible to request the enable
codes
directly by selecting 'Sweeping
Technology'
in the 'FSC repair information request'
menu
at the ASAP Portal.
A t t e n t i o n ! The defective used
part
must be forwarded through the exchange
part return loop. It is essential to
observe
PARTS_051_09_14 product information
bulletin!
Attention!
In the event that the head unit is
stolen, it is necessary to consult with
the
insurance company to determine whether
an exchange part
may be installed and whether the
associated flat rate deposit may be
applied
.
If the insurance demands that a
new part must be used, then the
corresponding part number must be taken
from the EPC
.
For vehicles with
Navigation system Business


































S606A=Yes
For vehicles with
DAB tuner

S654A=Yes
01 Exch. Car Infotainment Computer Mid MIC/VID/DAB 1 09/2009 03/2010 65129221831 ENDED
01 Exch. Car Infotainment Computer Mid MIC/VID/DAB 1 09/2009 09/2010 65129231159 ENDED
01 Exch. Car Infotainment Computer Mid MIC/VID/DAB 1 09/2009 65129244111
For vehicles with
Reversing camera
and
Preparation f mobile phone w Bluetooth
and
DAB tuner

S3AGA=No

S644A=No

S654A=No
01 Exch. Car Infotainment Computer Mid 1 09/2009 03/2010 65129221835 ENDED
For vehicles with
Reversing camera
and
Navigation system Business
and
DAB tuner

S3AGA=Yes

S606A=Yes

S654A=No
01 Exch. Car Infotainment Computer Mid MIC/VID 1 09/2009 65129231160
For vehicles with
Reversing camera
and
Navigation system Business
and
Voice control
and
DAB tuner

S3AGA=No

S606A=Yes

S620A=No

S654A=No
01 Exch. Car Infotainment Computer Mid 1 09/2009 65129231161
For vehicles with
Reversing camera
and
Voice control
and
Preparation f mobile phone w Bluetooth
and
DAB tuner

S3AGA=No

S620A=Yes

S644A=Yes

S654A=No
01 Exch. Car Infotainment Computer Mid MIC/VID 1 09/2009 03/2010 65129221834 ENDED
For vehicles with
Reversing camera
and
Navigation system Business
and
Voice control
and
Preparation, mobile phone, Business
and
Preparation f mobile phone w Bluetooth
and
DAB tuner

S3AGA=No

S606A=Yes

S620A=Yes

S633A=Yes

S644A=Yes

S654A=No
01 Exch. Car Infotainment Computer Mid 1 09/2009 65129231161
For vehicles with
Reversing camera
and
Navigation system Business
and
Voice control
and
Preparation, mobile phone, Business
and
Preparation f mobile phone w Bluetooth
and
DAB tuner

S3AGA=No

S606A=Yes

S620A=Yes

S633A=Yes

S644A=No

S654A=No
01 Exch. Car Infotainment Computer Mid 1 09/2009 65129231161
For vehicles with
Reversing camera
and
Navigation system Business
and
Voice control
and
Preparation, mobile phone, Business
and
Preparation f mobile phone w Bluetooth
and
DAB tuner

S3AGA=No

S606A=Yes

S620A=Yes

S633A=No

S644A=Yes

S654A=No
01 Exch. Car Infotainment Computer Mid 1 09/2009 65129231161
For vehicles with
Reversing camera
and
Navigation system Business
and
Voice control
and
Preparation, mobile phone, Business
and
Preparation f mobile phone w Bluetooth
and
DAB tuner

S3AGA=No

S606A=Yes

S620A=Yes

S633A=No

S644A=No

S654A=No
01 Exch. Car Infotainment Computer Mid MIC/VID 1 09/2009 65129231160
02 Button 1 09/2009 65129114289 $12.85
03 Guide 2 09/2009 65126929837 $1.29
04 Fillister head self-tapping screw ST4,2X16-U1- SW 2 09/2009 07119903793 $0.38
06 Front trim cover ECE 1 09/2009 65129270247
Notes
  • ENDED = the part has been discontinued (no longer available).
