X5 M F85 X5 M Engine block

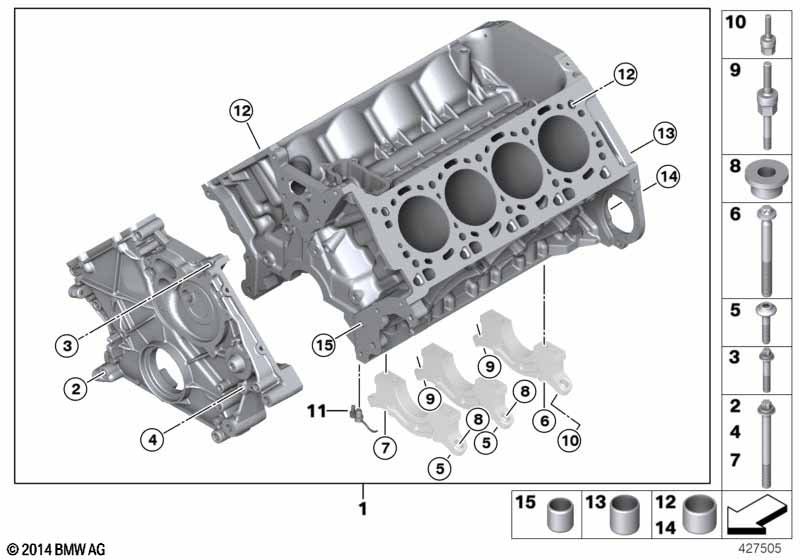

Engine block
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Part not available separately 1 00000000000
only in conjunction with
-- Piston (0) 8 11258607933
02 ASA-Bolt M8X85 3 07129905830 $1.96
03 ASA-Bolt M8X45-U1 1 07129905520 $1.25
04 ASA-Bolt M8X65-U1 2 07129905712 $1.16
05 Collar screw M8X37 7 11417508149 $0.88
06 Collar screw M11X99 10 11117628302
07 Collar screw M8X70 10 11117557325
08 Spacer bush 10 11111710132 $5.27
09 Spacer 2 11117568242 $11.30
10 Screw 1 11117568243 $5.13
11 Oil Spraying Nozzle 8 11427847109
12 Dowel D=14,5MM 4 11111743118 $1.65
13 Dowel D=8,3MM 2 11121715657 $1.25
14 Dowel D=14,5MM 2 11117524470 $1.65
15 Dowel D=10,5MM 2 11121726238 $1.62
