X5 M F85 X5 M Lower timing case

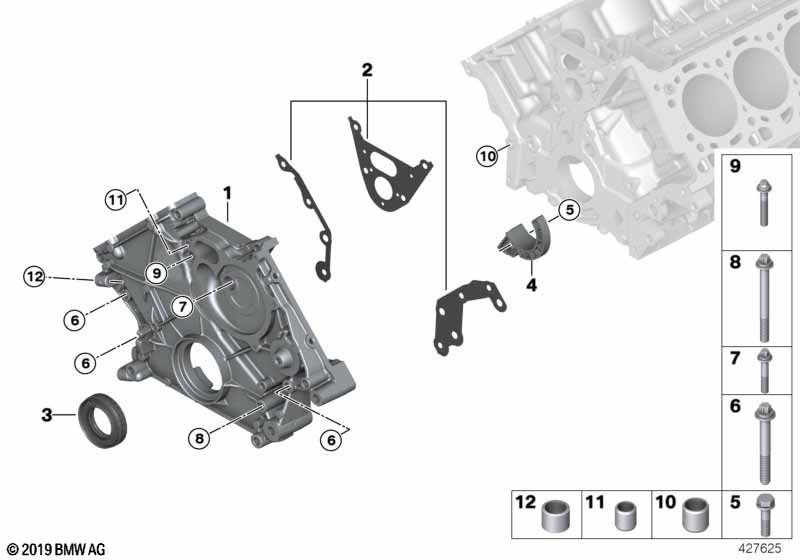

Lower timing case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing case cover, bottom 1 09/2017 11147564755 $264.39 ENDED, +core
01 Timing case cover, bottom 1 11148483795
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
02 Gasket f timing case 1 11147566411 $17.27
03 Shaft seal 45X75X13.5/20 1 11147647381
04 Chain guide 1 11147574373 $10.75
05 Hex bolt with washer M6X25-ZNNIV SI 1 07119905400 $0.65
06 ASA-Bolt M8X65-U1 4 07129905712 $1.16
07 ASA-Bolt M8X45-U1 2 07129905520 $1.25
08 ASA-Bolt M8X85 4 07129905830 $1.96
09 ASA-Bolt M8X55-U1 1 07129905831 $1.05
10 Dowel D=10,5MM 2 11121726238 $1.62
11 Dowel D=8,5X9MM 1 11121726242 $1.07
12 Dowel D=11,1MM 2 11121726245 $1.62
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
