X5 M F85 X5 M Oil pan/oil filter/oil measurement unit

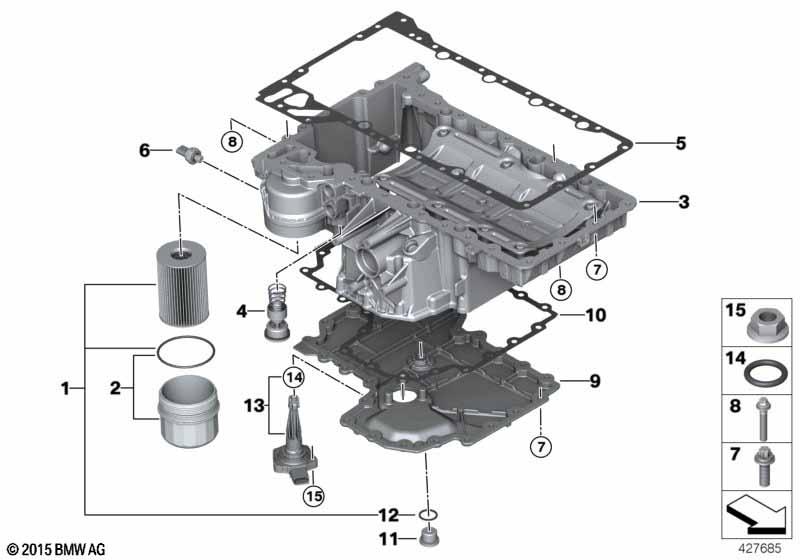

Oil pan/oil filter/oil measurement unit
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Set oil-filter element 1 11427848321
02 Oil filter cover 1 11427615389
03 Oil pan upper part 1 11137621072
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
04 Control valve 1 11427585703 +core
05 Gasket Steel 1 11137566644 $28.71
06 Oil pressure switch M12X1,5 1 12618611273
07 ASA-Bolt M8X25-U1-8.8 16 11/2015 07129906905 $0.56 ENDED
07 Torx screw, self-locking M8X25-U1-8.8 16 07129909333
08 ASA-Bolt M8X45-U1 10 11/2015 07129907068 ENDED
08 Torx screw, self-locking M8X45-U1 10 07129909348
09 Oil Pan 1 11137854418
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
10 Gasket Steel 1 11137566808 $28.71
Required for repair
-- ASA-Bolt M8X25-U1-8.8 25 07129906905 $0.56 ENDED
11 Screw plug M18X1,5-ZNNIV 1 07119905428 $11.47
12 Gasket ring A18X22-CU 1 07119963308 $0.25
13 Oil levelling sensor 1 12618608780
14 Gasket 1 12617604790
15 Hex nut M6-8-ZNNIV SI 3 07119905544 $0.64
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
