X5 M F85 X5 M Cylinder head cover

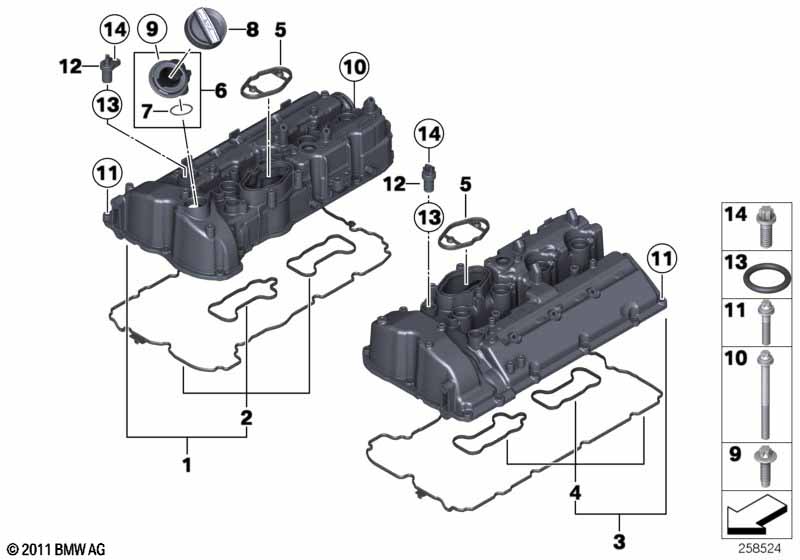

Cylinder head cover
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Only fits ignition coil Delphi
01 Cylinder head cover ZYL. 1-4 1 09/2015 11128648131
Only fits ignition coil
Bosch
01 Cylinder head cover ZYL. 1-4 1 10/2015 11127638639 +core
02 Set of profile gaskets ZYL. 1-4 1 11127614700
Only fits ignition coil Delphi
03 Cylinder head cover ZYL. 5-8 1 09/2015 11128648128
Only fits ignition coil
Bosch
03 Cylinder head cover ZYL. 5-8 1 10/2015 11127636612 +core
04 Set of profile gaskets ZYL. 5-8 1 11127614701
05 Profile-gasket 2 11127588416
06 Filler neck 1 11127647074
07 O-ring 36X2,5 1 07119906276
08 Cap for oil filler 1 05/2015 11128619360 ENDED
08 Cap for oil filler 1 11128655331
09 Torx bolt 3 11127624088
10 ASA-Bolt M6X70-U1 1 07129907217
11 ASA-Bolt M6X30-U1 31 07129907367
12 Camshaft position sensor 4 13627525014 $95.30 +core
13 O-ring 17X3 4 12141748398 $1.20
14 Star-socket screw M6X16-ZNNIV SI 4 07119907463
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
