X5 M F85 X5 M Belt Drive

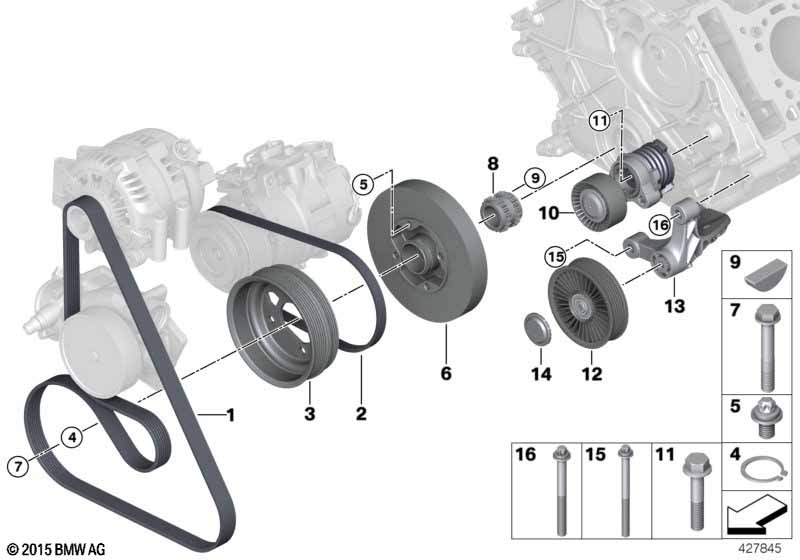

Belt Drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Ribbed v-belt PK7X1647 1 11287631824 +core
02 Ribbed v-belt 4PKX803 1 11287631825 +core
03 Pulley 1 11287570264 $70.73
04 Lock Ring 45X1,75 1 07119906458
05 ASA-Bolt M10X17-U1 4 07129906166
06 Vibration damper 1 11237572566 $660.37
07 Collar screw M18X1,5X122 1 11/2014 11237567298 $8.28 ENDED
07 Collar screw M18X1,5X122 1 11238648148
08 Sprocket 1 11217571037 $87.97
09 Woodruff key 4X5 1 07119951453 $0.36
10 Belt tensioner 1 11287549873 $101.95
11 Hex bolt M10X55-ZNNIV SI 1 07119904529 $1.33
12 Deflection pulley 1 32427564649
13 Bracket, deflection pulley 1 03/2017 32427567337 ENDED
13 Bracket, deflection pulley 1 11288699873
14 Protection cap 1 11287795159 $2.37
15 Screw M10X130 1 07129906523 $4.29
16 ASA bolt with washer M10X110-Z1-8.8 1 07129905883
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
