X5 M F85 X5 M Crankshaft/connecting rod/piston

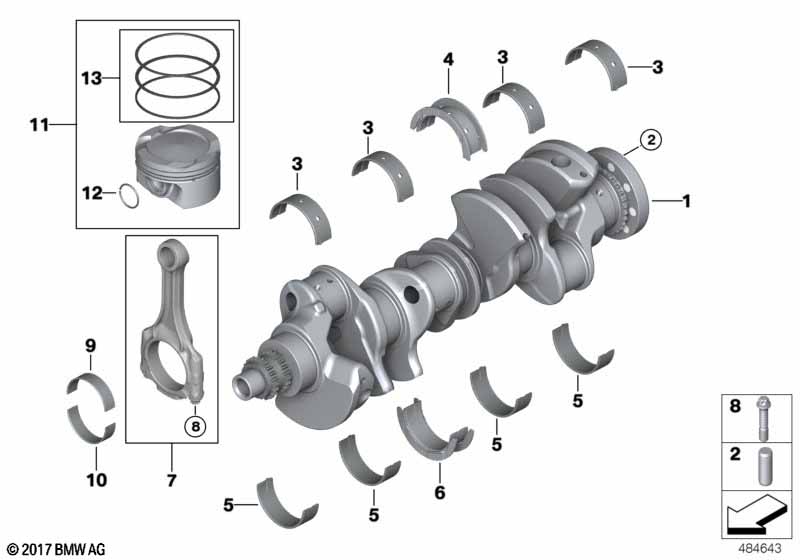

Crankshaft/connecting rod/piston
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Crankshaft without bearing shells 1 11217616597
only in conjunction with
-- Pin 1 11217500307 $2.47
02 Pin 1 11217500307 $2.47
03 Bearing shell, red 65,00MM(0) 4 11217604922
03 Bearing shell white 65,00MM(0) 4 11217604923
03 Bearing shell, black 65,00MM(0) 4 11217604924
03 Bearing shell in cyanblau 65,00MM(0) 4 11217846377
04 Guide-bearing Shell yellow 65,00MM(0) 1 11217576766 $37.98
04 Guide-bearing Shell green 65,00MM(0) 1 11217576767 $37.98
04 Guide bearing shell violet 65,00MM(0) 1 11217576768 $37.98
05 Bearing shell, red 65,00MM(0) 4 11217604925
05 Bearing shell white 65,00MM(0) 4 11217604926
05 Bearing shell, black 65,00MM(0) 4 11217604927
05 Bearing shell in cyanblau 65,00MM(0) 4 11217846378
06 Guide-bearing Shell yellow 65,00MM(0) 1 11217576763 $37.98
06 Guide-bearing Shell green 65,00MM(0) 1 11217576764 $37.98
06 Guide bearing shell violet 65,00MM(0) 1 11217576765 $37.98
07 Connecting rod L=138,5MM 8 11247843237 +core
08 Connecting rod bolt 16 11247845511
09 Bearing shell green 54,00MM(0) 8 11248611782
09 Bearing shell, red 54,00MM(0) 8 11247617339
10 Bearing shell yellow 54,00MM(0) 8 11248611781
10 Bearing shell, blue 54,00MM(0) 8 11247617338
10 Bearing shell green 54,00MM(0) 8 11248094852
only in conjunction with
-- Bearing shell, brown 54,00MM(0) 8 11248094853
10 Bearing shell green 54,00MM(0) 8 11248099610
only in conjunction with
-- Bearing shell, brown 54,00MM(0) 8 11248099611
10 Bearing shell, brown 54,00MM(0) 8 11248094853
only in conjunction with
-- Bearing shell green 54,00MM(0) 8 11248094852
10 Bearing shell, brown 54,00MM(0) 8 11248099611
only in conjunction with
-- Bearing shell green 54,00MM(0) 8 11248099610
11 Piston (0) 8 11258607933
12 Snap ring 16 11257556955 $2.30
13 Repair kit piston rings (0) 8 07/2016 11257649927
13 Repair kit piston rings (0) 8 11258073574
Notes
  • +core = plus core charge (possibility of a return of the old part)
