X5 M F85 X5 M Lubrication system/Oil pump with drive

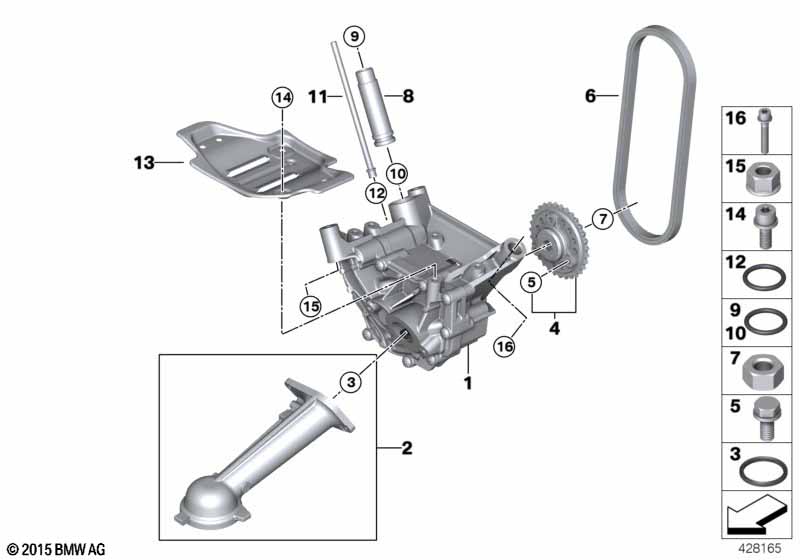

Lubrication system/Oil pump with drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil pump 1 11417643256
02 Suction pipe 1 11417850247
03 Profile-gasket 1 11417562090 $4.06
04 Sprocket 1 11417568820 $30.94
05 Hex bolt 3 11417641097
06 Chain 1 11417572531 $30.08
07 Hex nut M10 1 11417555245 $0.68
08 Oil pipe inlet 1 11417570849 $15.19
09 O-ring 17,5X2,62MM 1 11417508288 $1.19
10 O-ring 18,0X2,5MM 1 11421741129 $1.81
11 Oil pipe 1 11417563718 $6.78
12 O-ring 6,0X2,5 1 11421713597 $1.29
13 Oil deflector 1 11417614731
14 Torx-bolt with washer M6X16-8.8-ZNNIV 5 07129904819 $0.38
15 Hex nut 2 11417549699 $0.48
16 ISA screw M8X45 ZNNIV SI 1 07129905691 $0.71
