X5 M F85 X5 M Vacum control-engine-turbo charger

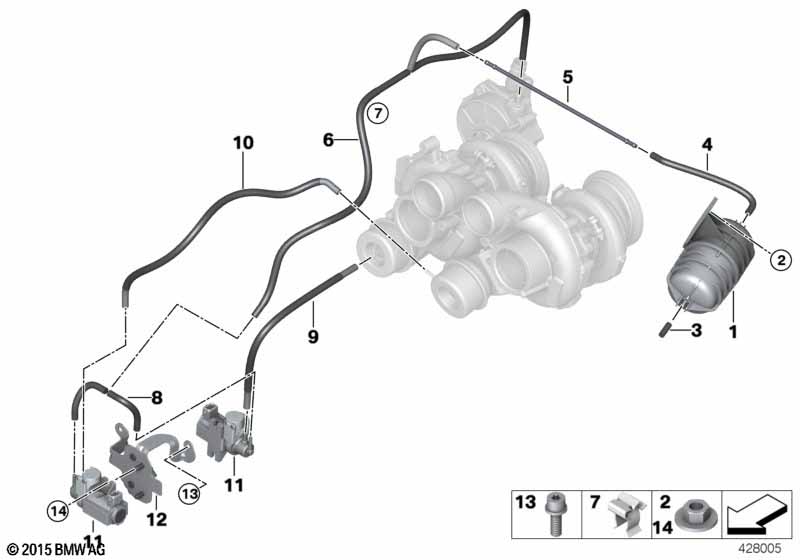

Vacum control-engine-turbo charger
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Vacuum tank 1 11657612487 +core
02 Hex nut BM6-8-ZNNIV SI 1 07129905411 $0.38
03 Cap D=3,5MM 1 11611437560 $3.39
04 Vacuum hose 1 11657848353
05 Vacuum pipe 1 11657848349
06 Vacuum pipe 1 11657850000
07 Pipe clip 1 18307565082 $0.38
08 Vacuum hose black X 11657847632
09 Vacuum hose 1 11657848346
10 Vacuum hose 1 11657848347
11 Pressure converter 2 11747626351
12 Bracket, electropn. pressure converter 1 11657848354
13 Isa screw with washer M6X18-U1-8.8 2 07129904707 $0.96
14 Hex nut BM6-8-ZNNIV SI 4 07129905411 $0.38
Notes
  • +core = plus core charge (possibility of a return of the old part)
