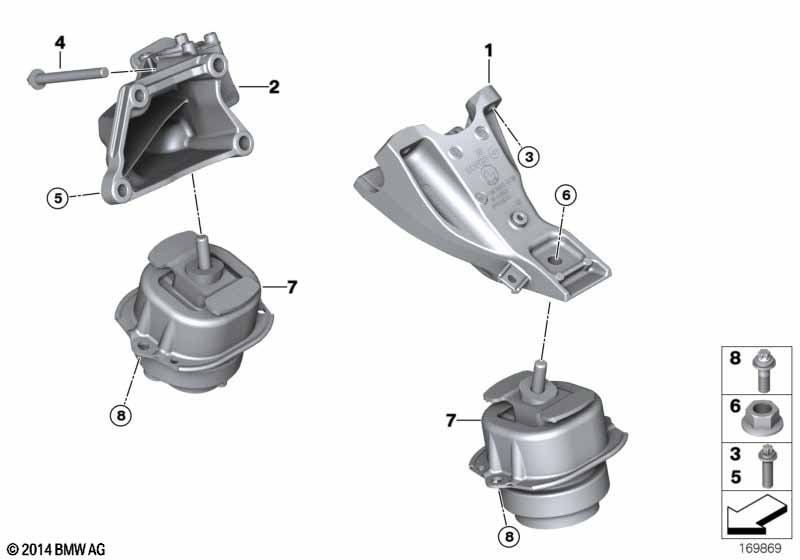

X5 M F85 X5 M Engine Suspension

Engine Suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine supporting bracket, left 1 05/2016 22116852861 ENDED
01 Engine supporting bracket, left 1 22116882035
02 Engine supporting bracket, right 1 05/2016 22116852868 ENDED
02 Engine supporting bracket, right 1 22116882036
03 Star-socket screw BM10X40-U1-8.8- 4 07119908517
04 ASA-Bolt M10X100-U1-8.8- 2 07129907183
05 Star-socket screw BM10X40-U1-8.8- 2 07119908517
06 Hex nut M12X1,5-10 ZNS3 2 07119906050 $1.09
07 Engine mount 2 22116793642
Required for repair
-- Hex nut M12X1,5-10 ZNS3 2 07119906050 $1.09
-- ASA screw, self-threading BM 10X30 4 07129907184
08 ASA screw, self-threading BM 10X30 4 07129907184
Notes
  • ENDED = the part has been discontinued (no longer available).
