X5 M F85 X5 M Front differential mount

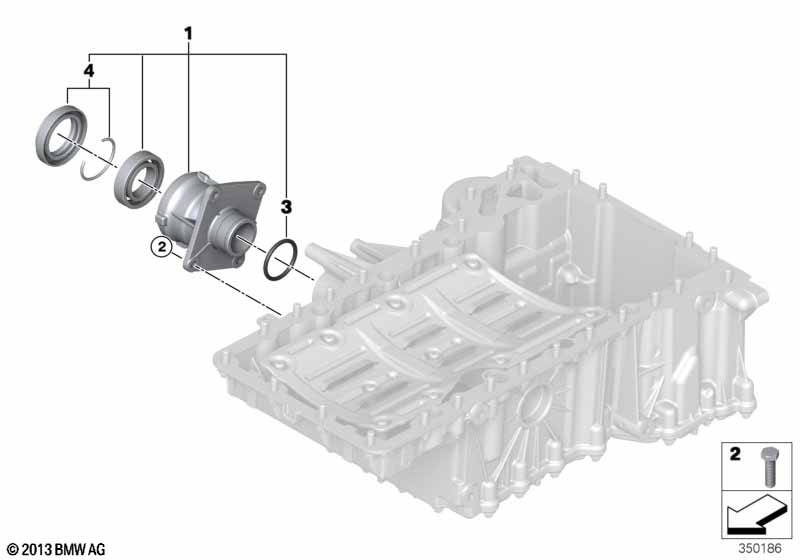

Front differential mount
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting bracket 1 07/2017 31507563778 ENDED, +core
01 Supporting bracket 1 31508699441
02 Hex bolt with washer M8X28-ZNNIV SI 4 08/2018 07119905530 $0.71
02 Hex bolt with washer M8X25 ZNS3 4 07119904793 $0.36
03 O-ring D=39MM 1 31511213527 $1.58
04 Shaft seal with lock ring 67X44X10/15.5 1 12/2017 33107505601 $16.75
04 Shaft seal with lock ring 67X44X10/15.5 1 31508743675
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
