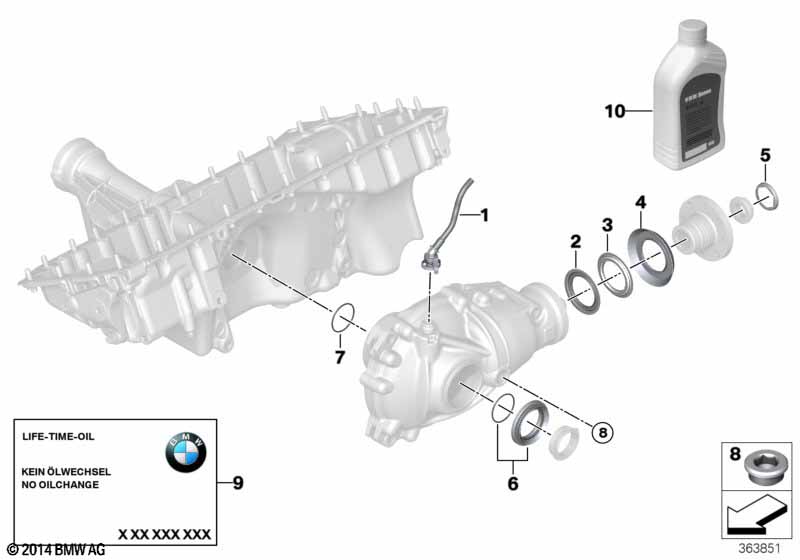

X5 M F85 X5 M Front differential, single parts

Front differential, single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Vent pipe 1 31507625115
02 Shaft seal 44X69X10/15 1 31521428678 $11.68
only in conjunction with
-- Securing plate 1 23211490120 $1.43
03 dustcover plate, small 1 31520019369
04 dustcover plate, large 1 31517589695
05 Securing plate 1 23211490120 $1.43
06 Shaft seal with lock ring 67X44X10/15.5 2 12/2017 33107505601 $16.75
06 Shaft seal with lock ring 67X44X10/15.5 2 31508743675
07 O-ring D=39MM 2 31511213527 $1.58
08 Screw plug with O-ring M22X1,5-ZNS3 1 33117525064 $3.91
09 Stick-on label DE, EN 1 01399791197 $4.25
10 Final-drive gear oil SAF-XO OSP, 1000ML X 33117695240 ENDED
10 BMW synthetic OSP 1L X 83222365987
Notes
  • ENDED = the part has been discontinued (no longer available).
