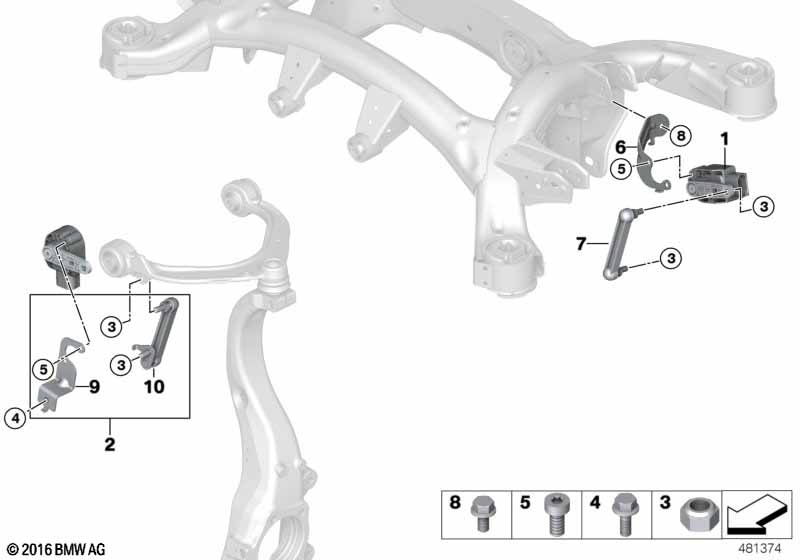

X5 M F85 X5 M Ride-height sensor/mounted parts

Ride-height sensor/mounted parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Level sensor 4 09/2015 37146867646 ENDED
01 Level sensor 4 37146870200
02 Repair kit for HSS, front left 1 01/2017 37146862789 ENDED
02 Repair kit for HSS, front right 1 01/2017 37146862790 ENDED
03 Hex nut M6-8-ZNNIV SI 10 07129905817
04 Hex bolt M6X16-8.8-ZNS3 2 07119904371 $0.16
05 ISA screw M5X10 10 07129904491
06 Left ride height sensor bracket 1 12/2014 37146859267 ENDED
06 Left ride height sensor bracket 1 37146871399
06 Right ride height sensor bracket 1 12/2014 37146859268 ENDED
06 Right ride height sensor bracket 1 37146871400
07 Regulating rod 71,5MM 2 37146752797 $6.18
08 Hex bolt M6X12-8.8-ZNS3 2 07119905827 $0.38
09 Left ride height sensor bracket 1 37146883037
09 Right ride height sensor bracket 1 37146883038
10 Control rod, left 1 37146854863
10 Control rod, right 1 37146854864
Notes
  • ENDED = the part has been discontinued (no longer available).
