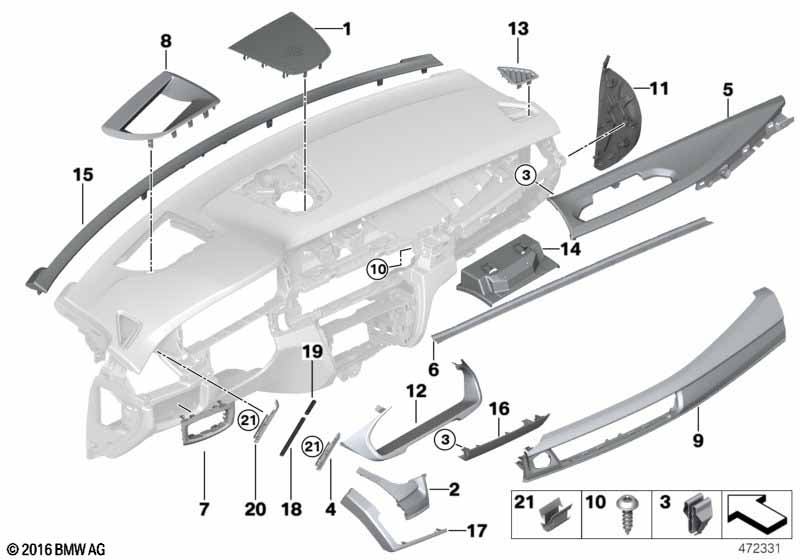

X5 M F85 X5 M Mounting parts, I-panel, top

Mounting parts, I-panel, top
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Harman/Kardon Surround Sound system
and
Bang&Olufsen High End Surround Sound

S688A=Yes

S6F2A=No
01 Trim center speaker metal SCHWARZ 1 51459298639
For vehicles with
HiFi speaker system
and
Harman/Kardon Surround Sound system
and
Bang&Olufsen High End Surround Sound

S676A=Yes

S688A=No

S6F2A=No
01 Trim center speaker metal SCHWARZ 1 51459281640
For vehicles with
Fine wood trim oak

S4CVA=Yes
02 Trim for dashboard American oak driver ANTHRAZIT GL. 1 51459284854
For vehicles with
Interior moldings Alu Trace

S4L9A=Yes
02 Trim f.dashboard aluminum Trace driver 1 51458058050
For vehicles with
Interior strips, piano lacquer, black

S4MLA=Yes
02 Cover, dashboard, left, Pianolack SCHWARZ 1 51458060785 NoS
For vehicles with
Interior moldings Carbon Fibre

S4MCA=Yes
02 Trim for dashboard carbon fibre driver 1 51458060384
03 Clamp X 07/2011 51167151389 $1.10 ENDED
03 Clamp X 07147321144
For vehicles with
Light package

S563A=No
04 Blanking plate, left 1 51459280792
For vehicles with
Full leather Merino/mugello-rot

X3MR=Yes
05 Trim cover I-panel leather top right SCHWARZ/ROT 1 51458062741
For vehicles with
Full leather Merino/aragon-brown

X3D8=Yes
05 Trim cover I-panel leather top right SCHWARZ/BRAUN 1 51458062742 NoS
For vehicles with
Individual leather-covered dashboard
and
  Alcantara/leather combination
  or
  Leather "Dakota"

S4M5A=Yes

GM=Yes

LC=Yes
05 Trim cover I-panel leather top right SCHWARZ/SCHWARZ 1 51459276274
For vehicles with
Leather "Merino"/silverstone 2
or
Leather Merino/sonoma-beige
or
Leather "Merino"/schwarz
or
All leather "Merino/silverstone 2"
or
Full leather Merino/sonoma-beige
or
Full leather Merino/black

LKA9=Yes

LKJR=Yes

LKSW=Yes

X3A9=Yes

X3JR=Yes

X3SW=Yes
05 Trim cover I-panel leather top right SCHWARZ/GRAU 1 51459317696
For vehicles with
Light package

S563A=No
06 Blanking plate, left 1 51459280790
07 Trim cover for lighting switch center SCHWARZ 1 51459281637
For vehicles with
Night Vision with human recognition

S6UKA=Yes
07 Trim cover for lighting switch center SCHWARZ 1 51459281638
08 Trim piece for head-up display SCHWARZ 1 51459281641
For vehicles with
Fine wood trim oak

S4CVA=Yes
09 Trim f.dashboard amer.oak front pass. ANTHRAZIT GL. 1 51459284856
For vehicles with
Interior moldings Alu Trace

S4L9A=Yes
09 Trim f.dashboard Al Trace front pass. 1 51458058051
For vehicles with
Interior strips, piano lacquer, black

S4MLA=Yes
09 Cov.pan.inst.pan.Piano Fin.Bl.fr.pass. 1 51458060786 NoS
For vehicles with
Interior moldings Carbon Fibre

S4MCA=Yes
09 Trim for dashb.carbon fibre front pass. 1 51458060386
10 Self tapping screw K40X12 X 07147698893 $0.55
11 Trim panel, I-panel, outer left SCHWARZ 1 51459281634
11 Trim panel, I-panel, outer right SCHWARZ 1 51459281635
12 Instruments combination covering 1 51459252537
13 Cover, side window defroster, left SCHWARZ 1 51459279287
13 Cover, side window defroster, right SCHWARZ 1 51459279288
14 Glove compartment oddments retainer 1 51459276238
15 Trim panel 1 51459276241
16 Cover panel, Centerstack, lower 1 51459252543
For vehicles with
Phoning with wireless charging

S6NWA=Yes
16 Cover panel, Centerstack, lower 1 51459389629
17 Accent strip for fresh air grille right PERLGLANZ CHROM 1 64229270670
17 Accent strip for fresh air grille left PERLGLANZ CHROM 1 64229270671
18 Hose, long 1 51459366284
19 Hose, short 1 08/2013 51459366584 ENDED, NoS
19 Hose, long 1 51459366284
20 Mount, fiber-optic cable, left 1 51459280791
21 Clamp 1 41511847745 ENDED, NoS
21 Clamp 1 51451857745 $0.42
Notes
  • NoS = No Stock (Part, central, not in stock.)
  • ENDED = the part has been discontinued (no longer available).
