X5 M F85 X5 M Mounting parts, I-panel, bottom

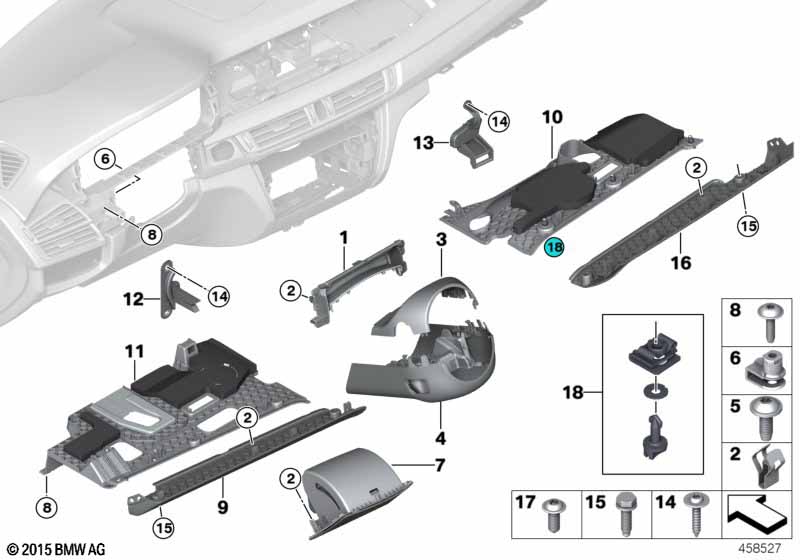

Mounting parts, I-panel, bottom
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Joint cover, steering column 1 51459256101
02 Clamp X 07149126987 $0.58
03 Steering column jacket, top 1 51459258210
For vehicles with
Comfort seat with memory
or
Seat adjuster, electric, with memory

S456A=Yes

S459A=Yes
04 Steering column jacket, lower 1 51459270584
05 Fillister head screw D=6X16 X 07149187173
06 C-clip for plastic nut X 07149200938
07 Folding box, driver's side SCHWARZ 1 51459281950
For vehicles with
100% Leather merino

X3=Yes
07 Fold-out bin, driver side, leather SCHWARZ 1 51458061430
08 Fillister head screw DELTA PT4X16 X 07149197038
10 Trim panel door entrance right SCHWARZ 1 51459252420
11 Trim panel foot controls SCHWARZ 1 51459252418
12 Foot controls trim panel bracket 1 51459276276
13 Bracket, passenger's footwell trim panel 1 51459276277
14 Oval-head screw with washer DELTA PT4X20 X 07149185673
17 Fillister head screw M6X16 X 51237031088 $2.91
18 Set of retaining elements 3 51459396731
