X5 M F85 X5 M Carrier, front

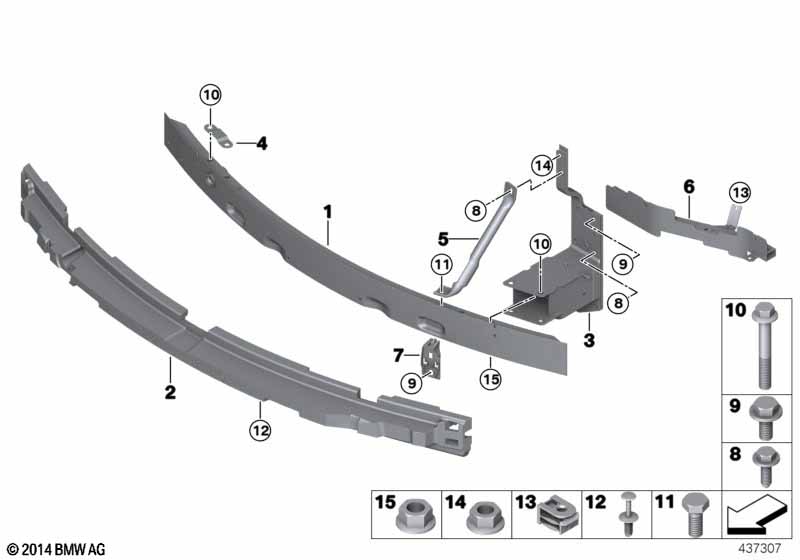

Carrier, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Carrier, bumper front 1 51117294477
02 Shock absorber front M 1 51118056302
03 Adapter element, front end, left US 1 51117325323
03 Adapter element, front end, right US 1 51117325324
04 Angled adapter plate 1 51167364175
05 Brace, front left 1 51117308057
05 Brace, front right 1 51117308058
06 Support for headlight, left 1 51647294491
06 Support for headlight, right 1 51647294492
07 Brace for insert, left 1 51117315959
07 Brace for insert, right 1 51117315960
08 Allen screw with self-centering tip M8X28-10.9 8 07146987886 $1.09
09 Hex bolt with washer M6X25-U2 6 07119905871 $0.59
10 Hex bolt M10X105-10.9 4 07119904356
11 Hex bolt M6X20 2 07119908004
12 Expanding rivet 2 51127004445 $0.33
13 C-clip for plastic nut TS5 6 07147311312
14 Hex nut M8-ZNS3 2 07119904024 $0.20
15 Flange nut M10-10-ZNS3 4 07119904670 $0.64
