X5 M F85 X5 M Trim and seals for door, front

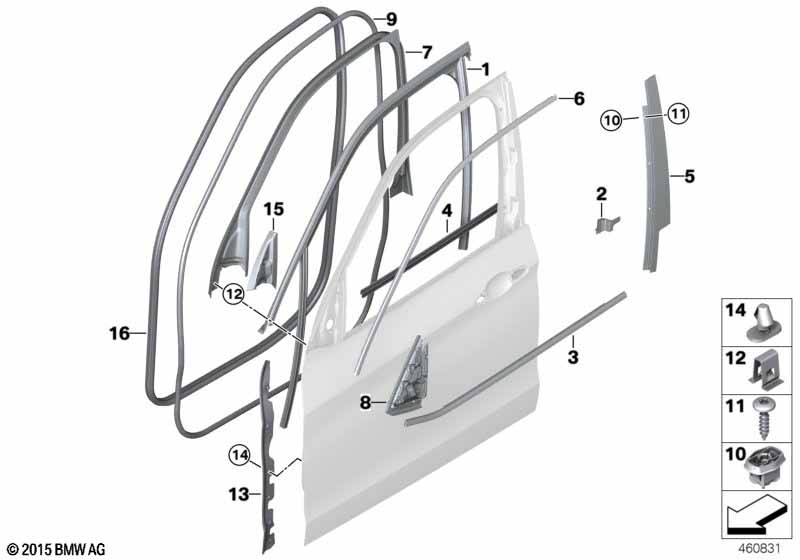

Trim and seals for door, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Version for cover
01 Window guide, left front door 1 51337289617
01 Window guide, right front door 1 51337289618
02 Seal, striker plate, door, front left 1 51337289629
02 Seal, striker plate, door, front right 1 51337289630
03 Channel cover,exterior,door, front left GLANZSCHWARZ 1 06/2016 51337289623 ENDED
03 Channel cover,exterior,door, front left GLANZSCHWARZ 1 51337465917
03 Channel cover,exterior,door, front right GLANZSCHWARZ 1 06/2016 51337289624 ENDED
03 Channel cover,exterior,door, front right GLANZSCHWARZ 1 51337465918
For vehicles with
Indiv. Ext. Line, burnished aluminium

S3MBA=Yes
03 Channel cover,exterior,door, front left ALU-SATINIERT 1 51337289621
03 Channel cover,exterior,door, front right ALU-SATINIERT 1 51337289622
04 Channel sealing,inside,door, front left 1 51337289627
04 Channel sealing,inside,door, front right 1 51337289628
05 Finisher window frame B-pillar FL door GLANZSCHWARZ 1 51337289613
05 Finisher window frame B-pillar FR door GLANZSCHWARZ 1 51337289614
06 Trim, window frame, top, door front left GLANZSCHWARZ 1 06/2016 51317289635 ENDED
06 Trim, window frame, top, door front left GLANZSCHWARZ 1 51317465921
06 Trim, window frame, upper, door fr right GLANZSCHWARZ 1 06/2016 51317289636
06 Trim, window frame, upper, door fr right GLANZSCHWARZ 1 51317465922
For vehicles with
Indiv. Ext. Line, burnished aluminium

S3MBA=Yes
06 Trim, window frame, top, door front left ALU-SATINIERT 1 51317289633
06 Trim, window frame, upper, door fr right ALU-SATINIERT 1 51317289634
without speaker and cover
07 Cover, window frame, door front left HIFI/HA. KARDON 1 51337395383
07 Cover, window frame, door front right HIFI/HA. KARDON 1 51337395384
For vehicles with
Bang&Olufsen High End Surround Sound
without speaker and cover

S6F2A=Yes
07 Cover, window frame, door front left BANG & OLUFSEN 1 51337373287
07 Cover, window frame, door front right BANG & OLUFSEN 1 51337373288
08 Seal, outer left mirror triangle 1 51337303919
08 Seal, outer right mirror triangle 1 51337303920
Stencil 2 358 171 included
09 Door weatherstrip front 2 51337289609
10 Clip, cover for column B 4 51337162282 $0.29
11 Fillister head screw 4X16 4 07147177960
12 Plug-in retainer 4 07146957034 $0.25
13 Seal, A-pillar, left 1 51767389661
13 Seal, A-pillar, right 1 51767389662
14 Clip GW16E-10050 12 51767386235
15 Grid left HIFI 1 51337395385
15 Grid, right HIFI 1 51337395386
For vehicles with
Harman/Kardon Surround Sound system

S688A=Yes
15 Grid left HARMAN KARDON 1 51337395387
15 Grid, right HARMAN KARDON 1 51337395388
For vehicles with
Bang&Olufsen High End Surround Sound

S6F2A=Yes
15 Grid left BANG & OLUFSEN 1 51337395389
15 Grid, right BANG & OLUFSEN 1 51337395390
16 Edge protection, door, front SCHWARZ 2 51727289610
Notes
  • ENDED = the part has been discontinued (no longer available).
