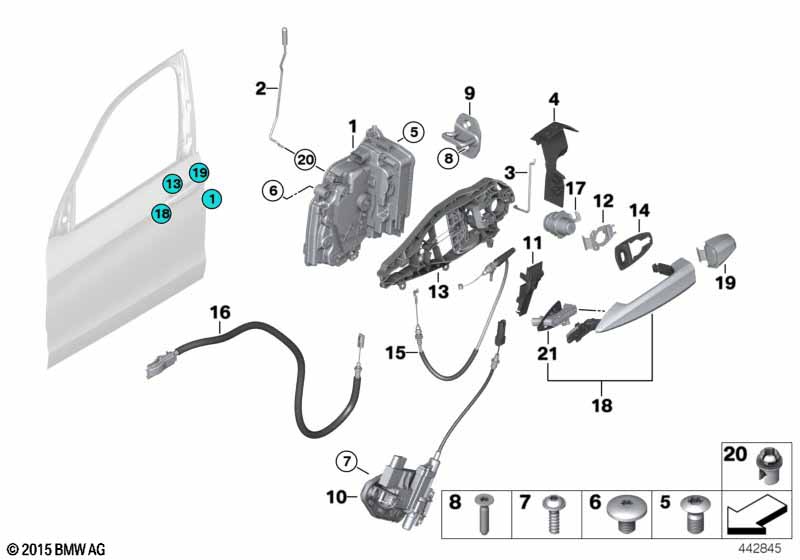

X5 M F85 X5 M Locking system, door, front
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | System latch, left | 1 | 51217281931 | ||||||
| 01 | System latch, right | 1 | 51217281934 | ||||||
| For vehicles with Soft-Close-Automatic doors |
S323A=Yes |
||||||||
| 01 | Door lock, front left | SCA | 1 | 51217281945 | |||||
| 01 | Door lock, front right | SCA | 1 | 51217281948 | |||||
| 02 | Operating rod, door front left | 1 | 51217293615 | ||||||
| 02 | Operating rod, door front right | 1 | 51217293616 | ||||||
| 03 | Lockrod, left | 1 | 51217304745 | ||||||
| 04 | Adapter for support member, front left | 1 | 51217304803 | ||||||
| 04 | Adapter for support member, front right | 1 | 51217304804 | ||||||
| 05 | Countersunk head screw, Torx | M6X11,5-10.9 | 4 | 07147291342 | |||||
| 06 | Torx-bolt with washer | ISA M8X12 | 2 | 07149149652 | $0.45 | ||||
| For vehicles with Soft-Close-Automatic doors |
S323A=Yes |
||||||||
| 07 | Fillister head screw with collar | 6 | 07147187828 | $0.38 | |||||
| 08 | Countersunk head screw | 4 | 51212755020 | $0.69 | |||||
| 09 | Lock striker with base | 2 | 51217394436 | ||||||
| For vehicles with Soft-Close-Automatic doors |
S323A=Yes |
||||||||
| 10 | Lock, Bowden cable, front left | SCA | 1 | 51207419839 | |||||
| 10 | Lock, Bowden cable, front right | SCA | 1 | 51207419840 | |||||
| 11 | Left bowden cable cover | SCA | 1 | 51217325297 | |||||
| 11 | Right bowden cable cover | SCA | 1 | 51217325298 | |||||
| 12 | Mounting bell | 1 | 51217304727 | ||||||
| 13 | Carrier, outside door handle, left | 1 | 51217401209 | ||||||
| 13 | Carrier, outside door handle, right | 1 | 51217401210 | ||||||
| For vehicles with Comfort access |
S322A=Yes |
||||||||
| 13 | Carrier, outside door handle, left | CA | 1 | 51217401211 | |||||
| 13 | Carrier, outside door handle, right | CA | 1 | 51217401212 | |||||
| 14 | Support for protective cap | 2 | 51217305015 | ||||||
| 15 | Bowd.cable,outside door handle front | 2 | 51217328100 | ||||||
| 16 | Bowden cable, door opener, front | 2 | 51217293621 | ||||||
| 17 | Lock cylinder according to code, left | 1 | 08/2013 | 51217392041 | ENDED | ||||
| 17 | Lock cylinder according to code, left | 1 | 51217497223 | ||||||
| 17 | Lock cylinder with key, left | 1 | 08/2013 | 51217392681 | ENDED | ||||
| 17 | Lock cylinder with key, left | 1 | 51217497225 | ||||||
| 18 | Door handle, primed, outer left | 1 | 51217396307 | ||||||
| 18 | Door handle, primed, outer right | 1 | 51217396308 | ||||||
| For vehicles with Comfort access |
S322A=Yes |
||||||||
| 18 | Outside door handle, primed, left | CA/OVT | 1 | 51217433843 | |||||
| 18 | Outside door handle, primed, right | CA/OVT | 1 | 51217433844 | |||||
| For vehicles with Comfort access and sparkling-brown metallic |
S322A=Yes WB53=Yes |
||||||||
| 18 | Door handle, painted, exterior right | SPARKLING BROWN | 1 | 51217348752 | ENDED | ||||
| 18 | Door handle, painted, exterior left | SPARKLING BROWN | 1 | 51217348751 | ENDED | ||||
| For vehicles with Comfort access and mineral-weiss metallic |
S322A=Yes WA96=Yes |
||||||||
| 18 | Door handle, painted, exterior right | MINERALWEISS | 1 | 51217348750 | ENDED | ||||
| 18 | Door handle, painted, exterior left | MINERALWEISS | 1 | 51217348749 | ENDED | ||||
| For vehicles with Comfort access and imperial-blau brillant metallic |
S322A=Yes WA89=Yes |
||||||||
| 18 | Door handle, painted, exterior right | IMPERIALBLAU | 1 | 51217348748 | ENDED | ||||
| 18 | Door handle, painted, exterior left | IMPERIALBLAU | 1 | 51217348747 | ENDED | ||||
| For vehicles with Comfort access and rubin-metallic black |
S322A=Yes WX03=Yes |
||||||||
| 18 | Door handle, painted, exterior right | RUBINSCHWARZ | 1 | 51217985780 | ENDED | ||||
| 18 | Door handle, painted, exterior left | RUBINSCHWARZ | 1 | 51217985779 | ENDED | ||||
| For vehicles with Comfort access and mineral-silber |
S322A=Yes WA14=Yes |
||||||||
| 18 | Door handle, painted, exterior right | MINERALSILBER | 1 | 51217366658 | ENDED | ||||
| 18 | Door handle, painted, exterior left | MINERALSILBER | 1 | 51217366657 | ENDED | ||||
| For vehicles with Comfort access and sophisto-grau brillant metallic |
S322A=Yes WA90=Yes |
||||||||
| 18 | Door handle, painted, exterior right | SOPHISTOGRAU | 1 | 51217356046 | ENDED | ||||
| 18 | Door handle, painted, exterior left | SOPHISTOGRAU | 1 | 51217356045 | ENDED | ||||
| For vehicles with Comfort access and black 2 |
S322A=Yes U668=Yes |
||||||||
| 18 | Door handle, painted, exterior right | SCHWARZ 2 | 1 | 51217328510 | ENDED | ||||
| 18 | Door handle, painted, exterior left | SCHWARZ 2 | 1 | 51217328509 | ENDED | ||||
| For vehicles with Comfort access and black-sapphire metallic |
S322A=Yes M475=Yes |
||||||||
| 18 | Door handle, painted, exterior right | BLACK SAPPHIRE | 1 | 51217348742 | ENDED | ||||
| 18 | Door handle, painted, exterior left | BLACK SAPPHIRE | 1 | 51217348741 | ENDED | ||||
| For vehicles with Comfort access and carbon-schwarz |
S322A=Yes M416=Yes |
||||||||
| 18 | Door handle, painted, exterior right | CARBONSCHWARZ | 1 | 51217348740 | ENDED | ||||
| 18 | Door handle, painted, exterior left | CARBONSCHWARZ | 1 | 51217348739 | ENDED | ||||
| 18 | Door handle, painted, exterior left | CARBONSCHWARZ | 1 | 51217414919 | ENDED | ||||
| 18 | Door handle, painted, exterior right | CARBONSCHWARZ | 1 | 51217414920 | ENDED | ||||
| For vehicles with Comfort access and glacier-silber metallic |
S322A=Yes WA83=Yes |
||||||||
| 18 | Door handle, painted, exterior right | GLACIERSILBER | 1 | 51217348746 | ENDED | ||||
| 18 | Door handle, painted, exterior left | GLACIERSILBER | 1 | 51217348745 | ENDED | ||||
| For vehicles with Comfort access and alpinweiss 3 |
S322A=Yes U300=Yes |
||||||||
| 18 | Door handle, painted, exterior right | ALPINWEISS 3 | 1 | 51217328508 | ENDED | ||||
| 18 | Door handle, painted, exterior left | ALPINWEISS 3 | 1 | 51217328507 | ENDED | ||||
| For vehicles with Comfort access and space-grey metallic |
S322A=Yes WA52=Yes |
||||||||
| 18 | Door handle, painted, exterior right | SPACEGRAU | 1 | 51217348744 | ENDED | ||||
| 18 | Door handle, painted, exterior left | SPACEGRAU | 1 | 51217348743 | ENDED | ||||
| For vehicles with Comfort access and Light package |
S322A=No S563A=Yes |
||||||||
| 18 | Door handle, primed, outer left | 1 | 51217396307 | ||||||
| 18 | Door handle, primed, outer right | 1 | 51217396308 | ||||||
| For vehicles with Comfort access and donington-grau metallic |
S322A=Yes WC28=Yes |
||||||||
| 18 | Door handle, painted, exterior right | DONINGTON GRAU | 1 | 51218064302 | ENDED | ||||
| 18 | Door handle, painted, exterior left | DONINGTON GRAU | 1 | 51218064301 | ENDED | ||||
| For vehicles with Comfort access and flamenco-rot Brillanteffekt metallic |
S322A=Yes WC06=Yes |
||||||||
| 18 | Door handle, painted, exterior left | FLAMENCOROT | 1 | 51217371367 | ENDED | ||||
| 18 | Door handle, painted, exterior right | FLAMENCOROT | 1 | 51217371368 | ENDED | ||||
| For vehicles with Comfort access and sparkling storm brillanteffekt metallic |
S322A=Yes WC07=Yes |
||||||||
| 18 | Door handle, painted, exterior left | SPARKLING STROM | 1 | 51217371369 | ENDED | ||||
| 18 | Door handle, painted, exterior right | SPARKLING STROM | 1 | 51217371370 | ENDED | ||||
| For vehicles with Comfort access and perl-silber metallic |
S322A=Yes WX01=Yes |
||||||||
| 18 | Door handle, painted, exterior right | PERLSILBER | 1 | 51217987206 | ENDED | ||||
| 18 | Door handle, painted, exterior left | PERLSILBER | 1 | 51217987205 | ENDED | ||||
| For vehicles with Comfort access and azurit-metallic black |
S322A=Yes WS34=Yes |
||||||||
| 18 | Door handle, painted, exterior right | AZURITSCHWARZ | 1 | 51217987192 | ENDED | ||||
| 18 | Door handle, painted, exterior left | AZURITSCHWARZ | 1 | 51217987191 | ENDED | ||||
| For vehicles with Comfort access and pyrit-braun metallic |
S322A=Yes WX13=Yes |
||||||||
| 18 | Door handle, painted, exterior right | PYRITBRAUN | 1 | 51217985882 | ENDED | ||||
| 18 | Door handle, painted, exterior left | PYRITBRAUN | 1 | 51217985881 | ENDED | ||||
| For vehicles with Comfort access and long-beach-blue metallic |
S322A=Yes WC16=Yes |
||||||||
| 18 | Door handle, painted, exterior right | LONG BEACH BLUE | 1 | 51218063326 | ENDED | ||||
| 18 | Door handle, painted, exterior left | LONG BEACH BLUE | 1 | 51218063325 | ENDED | ||||
| For vehicles with Comfort access and silverstone 2 metallic |
S322A=Yes WA29=Yes |
||||||||
| 18 | Door handle, painted, exterior right | SILVERSTONE 2 | 1 | 51218063496 | ENDED | ||||
| 18 | Door handle, painted, exterior left | SILVERSTONE 2 | 1 | 51218063495 | ENDED | ||||
| For vehicles with Comfort access and melbourne-rot metallic |
S322A=Yes WA75=Yes |
||||||||
| 18 | Door handle, painted, exterior right | MELBOURNEROT | 1 | 51218063494 | ENDED | ||||
| 18 | Door handle, painted, exterior left | MELBOURNEROT | 1 | 51218063493 | ENDED | ||||
| For vehicles with Comfort access |
S322A=Yes |
||||||||
| 19 | Covering primend left | 1 | 51217396541 | ||||||
| 19 | Covering primend right | 1 | 51217396544 | ||||||
| 20 | Circlip | CLIP | 2 | 51217404345 | |||||
| For vehicles with Comfort access or Light package |
S322A=Yes S563A=Yes |
||||||||
| 21 | Lighting element with support, left | 1 | 51217433845 | ||||||
| 21 | Lighting element with support, right | 1 | 51217433846 | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
