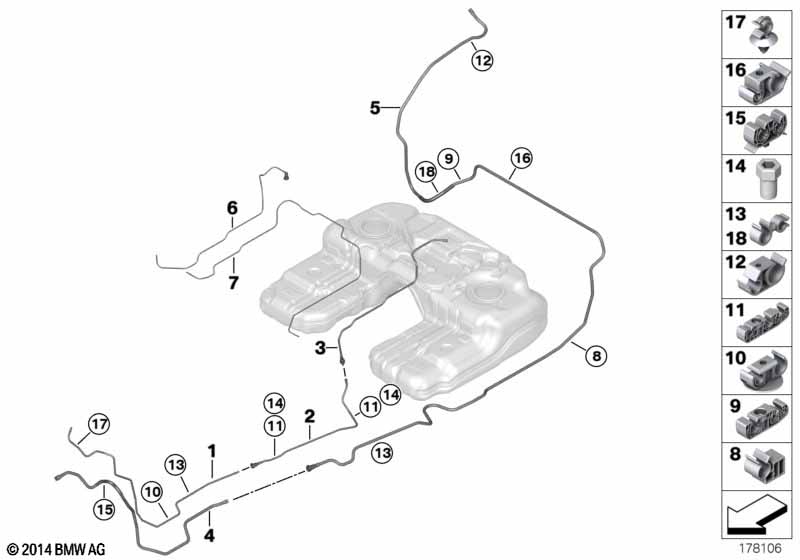

X6 F16 X6 50iX 4.4 Fuel pipes / Mounting parts
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel feed line | 1 | 16127203636 | $30.47 | |||||
| 02 | Fuel feed line | 1 | 16117164395 | $30.47 | |||||
| 03 | Fuel feed line | 1 | 16117164349 | $30.47 | |||||
| For vehicles with Outside fuel filter |
S1AKA=Yes |
||||||||
| 03 | Fuel feed line | 1 | 16117195127 | $30.47 | |||||
| 04 | Scavenge air line | 1 | 16127347894 | ||||||
| 05 | Scavenge air line | 1 | 16117164402 | $70.95 | |||||
| For vehicles with Outside fuel filter |
S1AKA=Yes |
||||||||
| 05 | Scavenge air line | 1 | 16127195339 | ||||||
| For vehicles with Auxiliary heating |
S536A=Yes |
||||||||
| 06 | Fuel feed line | 1 | 16117164352 | ||||||
| 07 | Pressure hose assy | 1 | 16117170952 | ||||||
| 08 | Pipe clip | D14 | 3 | 16126766397 | $1.05 | ||||
| 09 | Pipe clip | D12/2XD4,75 | 3 | 16126766234 | $2.05 | ||||
| 10 | Pipe clip | D12/D8 | 2 | 16136753248 | $0.98 | ||||
| 11 | Pipe clip | D8/D12/2XD4,75 | 2 | 16126763897 | $2.05 | ||||
| 12 | Clip | D12-D18 | 3 | 16117164411 | $1.62 | ||||
| 13 | Hose clamp | 2 | 13537831681 | $1.08 | |||||
| 14 | Bolting pin, short | 2 | 16126766237 | $0.35 | |||||
| 15 | Pipe clip | 1 | 16126765062 | $2.05 | |||||
| 16 | Pipe clip | 2 | 16117185674 | $1.53 | |||||
| 17 | Fuel pipe bracket | 1 | 16126758230 | $1.38 | |||||
| 18 | Hose clamp | 1 | 16127207619 | ||||||
