X6 M F86 X6 M Roof-mounted container 320 LCI
Sponsored links
Sponsored links

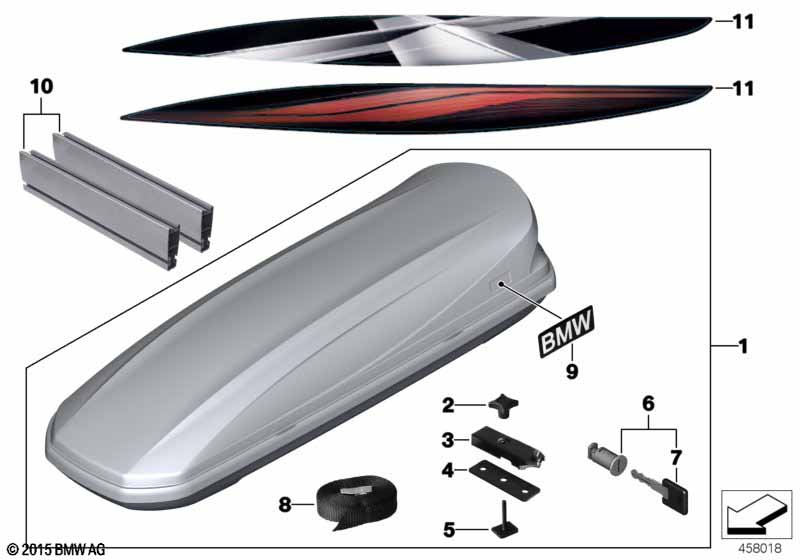

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
||||||||
| 01 | Roof-mounted container 320 LCI | SILBER | 1 | 82732209906 | ENDED | ||||
| 01 | Roof-mounted container 320 LCI | SCHWARZ | 1 | 82732209907 | |||||
| 01 | Roof box 320 in white | 320 LITER | 1 | 82732326508 | ENDED | ||||
| 01 | Roof box 320 in titansilber | 320 LITER | 1 | 82732326509 | |||||
| 02 | Clamping bolt | M8 | 4 | 82730412018 | $5.75 | ||||
| 03 | Clamp plate | M8 | 4 | 82730412019 | $5.50 | ||||
| 04 | Base | DACHBOX | 4 | 82730300928 | $0.50 | ||||
| 05 | Slidning block | M8 | 4 | 82792444005 | |||||
| 06 | Catch incl. key | 1 | 82730300930 | $19.00 | |||||
| 07 | Key (Code) | 2 STK. | 1 | 82790148388 | $8.50 | +core | |||
| 08 | Tension belt | DACHBOX | 2 | 82730300931 | $17.19 | ||||
| 09 | Label | DACHBOX | 2 | 82730300932 | $16.00 | ||||
| 10 | Ski supports | DACHBOX 320 NF | 1 | 82732209908 | ENDED | ||||
| 11 | Roof box decor strips | SPORT / 320 | 1 | 51142406714 | ENDED, EBA 2410144 | ||||
| only applies to | |||||||||
| 11 | Roof box decor strips | X / 320 | 1 | 51142406717 | ENDED, EBA 2410144 | ||||
| only applies to | |||||||||
| -- | Roof-mounted container 320 LCI | SILBER | X | 82732209906 | ENDED, EBA 0412017 | ||||
| -- | Roof-mounted container 320 LCI | SCHWARZ | X | 82732209907 | EBA 0412017 | ||||
| -- | Roof box 320 in white | 320 LITER | X | 82732326508 | ENDED, EBA 0412017 | ||||
| -- | Roof box 320 in titansilber | 320 LITER | X | 82732326509 | EBA 0412017 | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- EBA = Einbauanleitung (Installation instructions)
