X6 M F86 X6 M Bicycle carrier, trailer coupling
Sponsored links
Sponsored links

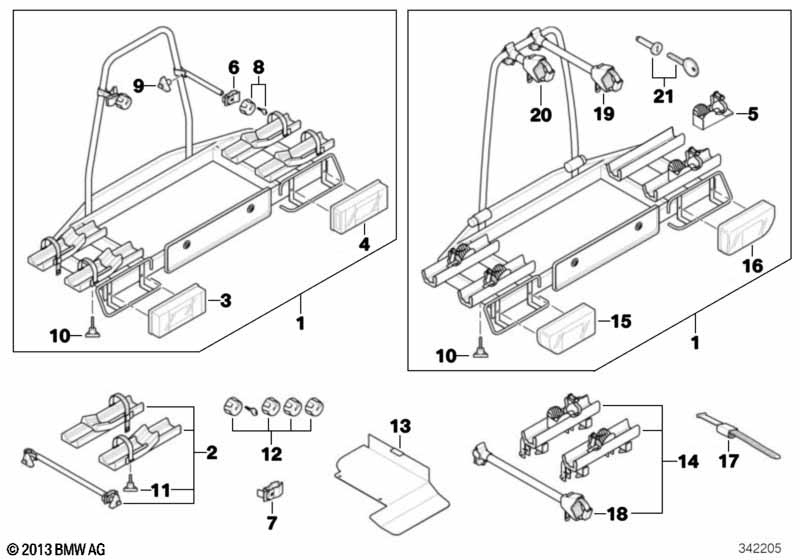

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Towing hitch, detachable or Trailer coupling |
S235A=Yes S3ACA=Yes |
||||||||
| 01 | Rear bicycle carrier | HOHE AUSF/L+RHD | 1 | 82720440791 | ENDED, +core, EBA 0142773 | ||||
| 02 | Third bicycle mounting fixture | 1 | 82720145795 | $139.95 | ENDED, EBA 0145796 | ||||
| only applies to | |||||||||
| -- | Bicycle rack for AHK | X | 82720399099 | $563.30 | ENDED | ||||
| 03 | Cover glass,left | 1 | 82790142768 | $55.80 | ENDED, +core | ||||
| Rectilinear lamp | |||||||||
| 04 | Cover glass,right | 1 | 82790142769 | $55.80 | ENDED, +core | ||||
| Rectilinear lamp | |||||||||
| 05 | Rim shoe | 1 | 82790422670 | ENDED | |||||
| not suitable for | |||||||||
| -- | Bicycle rack for AHK | X | 82720142772 | $499.95 | ENDED, EBA 0142773 | ||||
| Nicht passend zu 0 142 772 | |||||||||
| 06 | Holder | 1 | 82799404852 | $33.76 | |||||
| 07 | Holder XL | 1 | 82790149187 | $37.94 | ENDED, +core | ||||
| 08 | Lockable handwheel | 1 | 82799408514 | $53.57 | |||||
| 09 | Star handle | 1 | 82790149188 | $9.04 | ENDED | ||||
| 10 | Star handle | M 6 X 35 | 1 | 82790149242 | $6.50 | ||||
| 11 | Star handle | 1 | 82790149243 | $6.50 | |||||
| 12 | Handwheel set | 1 | 82790149191 | $93.74 | |||||
| 14 | Third bicycle mounting fixture | 1 | 82722158967 | +core, EBA 0145796 | |||||
| only applies to | |||||||||
| -- | Bicycle rack for AHK | X | 82720399099 | $563.30 | ENDED, EBA 0142773 | ||||
| 15 | Rear light, left | 1 | 07/2016 | 82710421333 | $61.00 | ENDED, EBA 0418181 | |||
| 15 | Rear light, left | 1 | 82792449919 | EBA 0418181 | |||||
| 16 | Rear light, right | 1 | 07/2016 | 82710421332 | $61.00 | ENDED, EBA 0418181 | |||
| 16 | Rear light, right | 1 | 82792449920 | EBA 0418181 | |||||
| 17 | Ratchet strap | 1 | 82722159337 | ||||||
| 18 | Retaining arm | LANG | 1 | 82722159334 | |||||
| 19 | Retaining arm | MITTEL | 1 | 82722159333 | |||||
| 20 | Retaining arm | KURZ | 1 | 82722159331 | +core | ||||
| 21 | Key | TRANSPORTPLATTF | 1 | 82722159338 | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- EBA = Einbauanleitung (Installation instructions)
