X6 M F86 X6 M Steering column, electr./ steering shaft

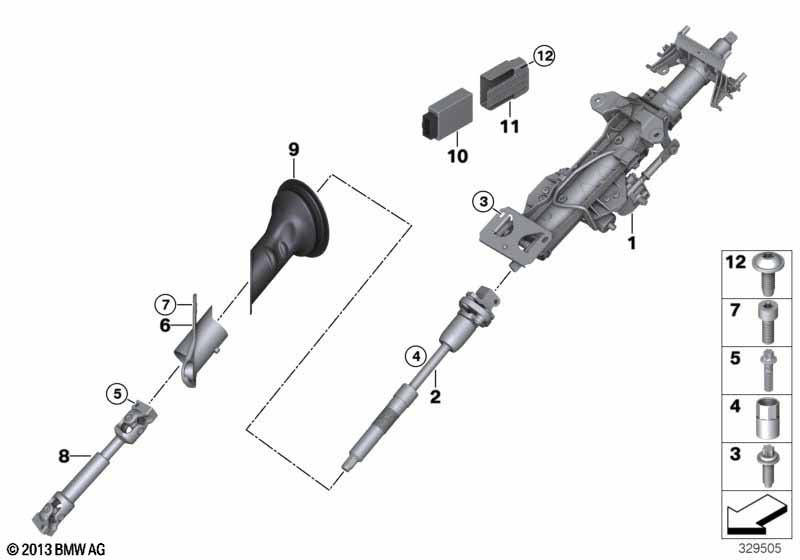

Steering column, electr./ steering shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Note:
Before part exchange, in case of
problems with squeaking/creaking noises
from the steering/steering column
switch cluster area, observe SIB
61343056-02.
01 Steering wheel column adjustment,electr. 1 32306868391
02 Steering shaft, center 1 32307851591
03 ASA-Bolt M8X28 4 32306762999 $0.92
04 Securing nut M30X1,5 1 32306774317 $9.53
05 Torx bolt M8X33 3 32306778609 $0.67
06 Mounting plate, steering shaft, center 1 32306777041 +core
07 ISA screw M6X16-8.8-ZNNIV 3 07129905536 $0.64
08 Lower joint assy 1 32306776928 +core
09 Steering shaft sleeve 1 32306854954
10 Steering column control unit 1 05/2014 32306872160 ENDED
10 Steering column control unit 1 06/2016 32306865245 ENDED
10 Steering column control unit 1 03/2017 32306882780
11 Steering column control unit bracket 1 32306862375
12 Fillister head screw D=6X16 1 07149187173
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
