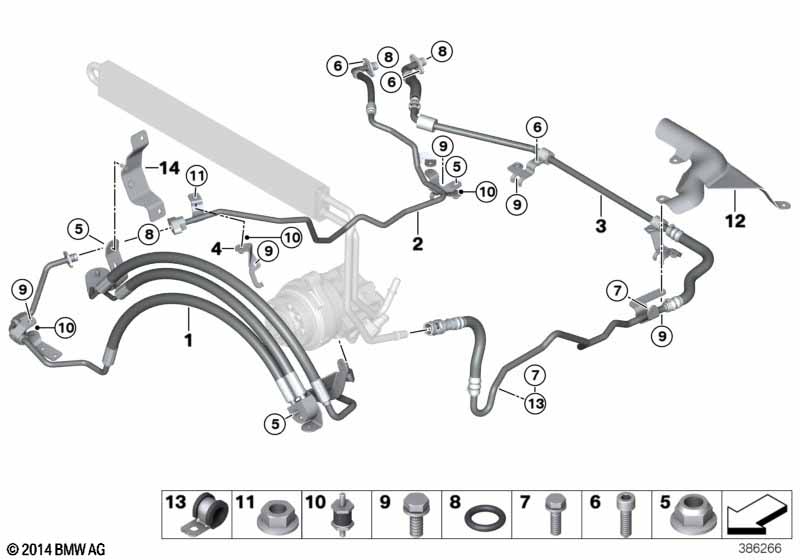

X6 M F86 X6 M Fluid lines / Adaptive Drive

Sponsored links

No.	Description	Supp.	Qty	Part Number	Price
01	Exp. hose, Adaptive Drive 1st section		1	32416863320
02	Exp. hose for Adaptive Drive 2nd section		1	32416851279
03	Return pipe		1	32416855259
04	Bracket, expansion hose		1	32416855697
05	Self-locking hex nut	M6-8-ZNNIV SI	6	07119905949	$0.24
06	Fillister-head screw	M6X20-10.9-ZNS3	8	07119906652	$0.38
07	Hex bolt with washer	M6X20	4	07119904527	$0.44
08	O-ring	11X1,8 HNBR	2	32416788696	$5.00
09	Hex bolt	M6X15-U1-8.8	3	07119902937	$0.80
10	Vibration damper	H=25	3	32416778960	$22.90
	only in conjunction with
--	Self-locking hex nut	M6-8-ZNNIV SI	3	07119905949	$0.24
11	Hex nut	M6-8-ZNNIV SI	3	07119905544	$0.64
12	Heat resistant plate		1	32416859266
13	Clamp		1	32416790460	$4.70
14	Bracket, expansion hose		1	31357850218
