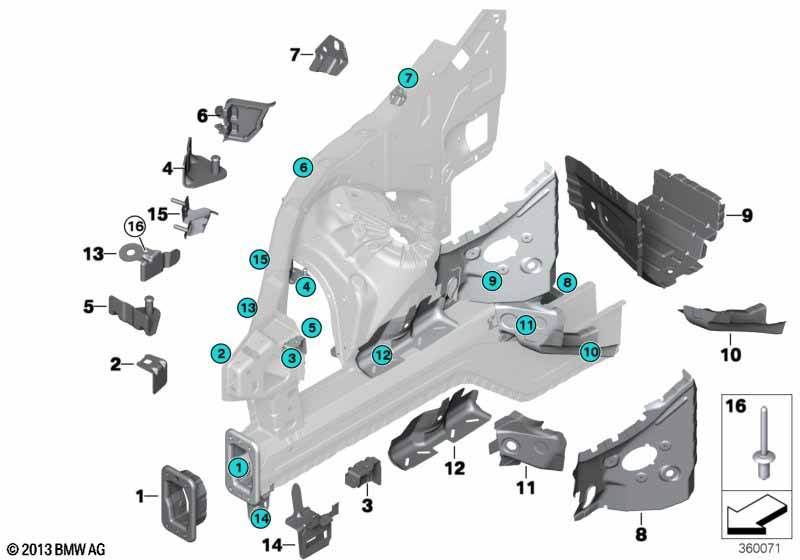

X6 M F86 X6 M Front body bracket right
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Mount, cross member right | 1 | 41117174306 | $57.16 | |||||
| 02 | Bracket, module carrier, right | 1 | 41007186660 | $15.38 | |||||
| 03 | Bracket right | 1 | 41117174384 | $15.90 | |||||
| 04 | Bracket, DSC | 1 | 41117174270 | $11.78 | |||||
| 05 | Bracket, DSC | 1 | 41117174270 | $11.78 | |||||
| 06 | Moulded part f wheel housing supp.,front | 1 | 41117159145 | $9.59 | |||||
| 07 | Bracket, side panel, top right | 1 | 41007397236 | ||||||
| 08 | Right engine compartment partition | 1 | 41117180942 | $366.24 | |||||
| 09 | Connect.plate f.right side panel frame | 1 | 41117174304 | $96.62 | |||||
| 10 | Right supporting strut reinforcement | 1 | 41117174330 | $43.30 | |||||
| 11 | Engine mount support, rear right | 1 | 41117174302 | $32.98 | |||||
| 12 | Support, wheelhouse right | 1 | 41117174332 | $52.37 | |||||
| 13 | Holder, brake hose, right | 1 | 41117174344 | $5.23 | |||||
| 14 | Bracket, radiator bottom right | 1 | 41117174342 | $13.84 | |||||
| 15 | Relay box bracket | 1 | 61139141490 | $5.73 | |||||
| 16 | Blind rivet N10 | X | 07149144282 | $1.49 |
