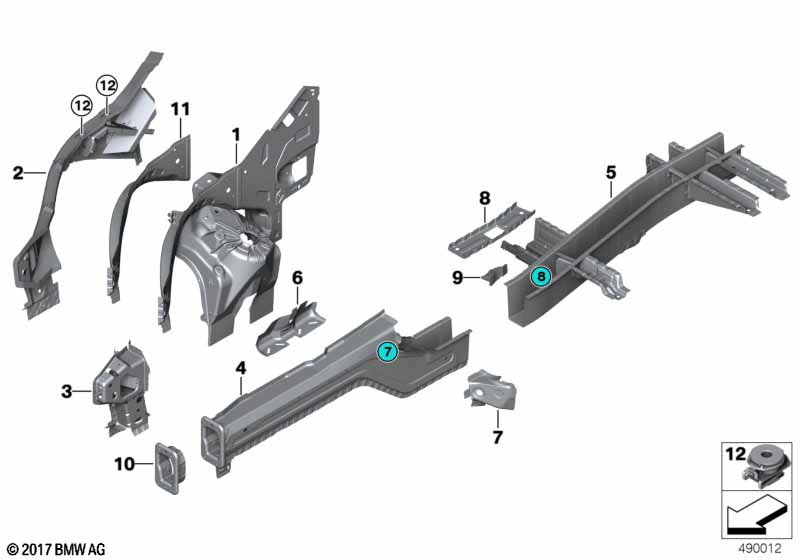

X6 M F86 X6 M Wheelhouse/engine support
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| Performed using adhesive bonding/ riveting repair method. |
|||||||||
| 01 | Front left wheelhouse | 1 | 41117377771 | ||||||
| Required for repair | |||||||||
| 01 | Wheelhousing without VIN, front right | 1 | 41117377772 | ||||||
| Required for repair | |||||||||
| -- | Blind rivet N1 | 25 | 83190301414 | $1.98 | |||||
| -- | Bodywork adhesive K1 | 195ML | 1 | 83190413015 | $244.89 | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | EBA 2446652 | ||||
| -- | Blind rivet N7 | 150 STÜCK | 1 | 83192240352 | |||||
| -- | Seam sealer | 300ML | 1 | 83422409985 | |||||
| 01 | Wheelhousing with VIN, front right | 1 | 41112359510 | ||||||
| 02 | Supporting strut, left | 1 | 41117390609 | ||||||
| Required for repair | |||||||||
| -- | Seam sealer | 300ML | 1 | 83422409985 | |||||
| -- | Section of left front wheel housing | 1 | 41117377785 | ||||||
| 02 | Supporting strut, right | 1 | 41117390610 | ||||||
| Required for repair | |||||||||
| -- | Seam sealer | 300ML | 1 | 83422409985 | |||||
| -- | Section of right front wheel housing | 1 | 41117377786 | ||||||
| 03 | Section of left front wheel housing | 1 | 41117377785 | ||||||
| 03 | Section of right front wheel housing | 1 | 41117377786 | ||||||
| 04 | Engine support, left | 1 | 41117174281 | $630.65 | |||||
| Required for repair | |||||||||
| 04 | Front right engine support | 1 | 41117382220 | ||||||
| Required for repair | |||||||||
| -- | Seam sealer | 300ML | 1 | 83422409985 | |||||
| 05 | Rear right engine support | 1 | 41117174284 | $463.81 | |||||
| 05 | Rear left engine support | 1 | 41117393151 | ||||||
| 06 | Support, wheelhouse left | 1 | 41117174331 | $52.37 | |||||
| 06 | Support, wheelhouse right | 1 | 41117174332 | $52.37 | |||||
| 07 | Engine mount support, rear left | 1 | 41117174543 | $32.98 | |||||
| 07 | Engine mount support, rear right | 1 | 41117174544 | $32.98 | |||||
| 08 | Left engine support reinforcement | 1 | 41117195357 | $51.84 | |||||
| 08 | Reinforcement, engine support right | 1 | 41117195358 | $51.84 | |||||
| 09 | Bracket for ARS valve body | 1 | 41137195239 | $41.67 | |||||
| 10 | Mount, cross member left | 1 | 41117174305 | $57.16 | |||||
| 10 | Mount, cross member right | 1 | 41117174306 | $57.16 | |||||
| Performed using adhesive bonding/ riveting repair method. |
|||||||||
| 11 | Supporting strut,whl house, interior lft | 1 | 41117442775 | ||||||
| 11 | Supporting strut,whl house,interior rght | 1 | 41117442776 | ||||||
| 12 | Alignment element | 4 | 63127280779 | ||||||
Notes
- EBA = Einbauanleitung (Installation instructions)
