X6 M F86 X6 M Splash wall parts

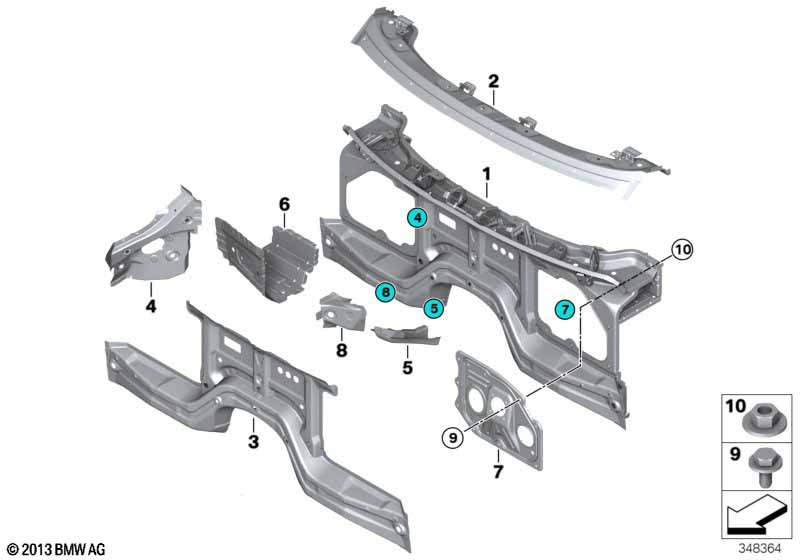

Splash wall parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Splash wall 1 41117382211
02 Cross member, splash wall 1 41117382230
03 Supporting strut, front wall 1 41117382204
04 Left engine compartment partition 1 41117180941 $366.24
04 Right engine compartment partition 1 41117180942 $366.24
05 Left supporting strut reinforcement 1 41117174329 $43.30
05 Right supporting strut reinforcement 1 41117174330 $43.30
06 Connect.plate f.left side panel frame 1 41117174303 $96.62
06 Connect.plate f.right side panel frame 1 41117174304 $96.62
07 Reinforcement, pedal assembly 1 51717137365 $39.35
08 Engine mount support, rear left 1 41117174301 $32.98
08 Engine mount support, rear right 1 41117174302 $32.98
09 Hex bolt with washer M6X12.4MM ZNS3 8 07146954299 $0.64
10 Hex nut BM6-8-ZNNIV SI 8 07129905411 $0.38
