X6 M F86 X6 M Roof

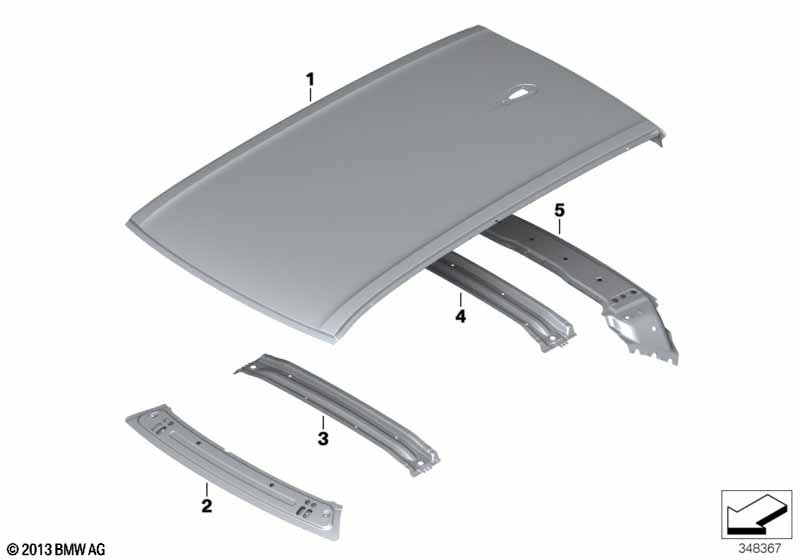

Roof
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Glass roof, electrical

S403A=Yes
01 Roof cover SD 1 41317352130
Required for repair
-- Screw SF PLUS M5X15 2 83190301639 $0.31
-- Cavity protection wax remover 500ML 1 83120390086
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 15 83192158079 $0.39
-- Body adhesive K5 50 ML 2 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Positioning aid T-bolt 1 41222460213
-- T-welding stud L=5,4MM 20 41318412638
For vehicles with
Glass roof, electrical

S403A=No
01 Roof cover 1 41117352099
Required for repair
-- Screw SF PLUS M5X15 2 83190301639 $0.31
-- Cavity protection wax remover 500ML 1 83120390086
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 15 83192158079 $0.39
-- Body adhesive K5 50 ML 2 83192158654
-- Cleaner R1 100ML 1 83192211217 EBA 2446652
-- Seam sealer 300ML 1 83422409985
-- Positioning aid T-bolt 1 41222460213
-- T-welding stud L=5,4MM 20 41318412638
02 Upper apron 1 41007352139
03 Roof bow, front 1 41237352141
05 Rear window frame upper part 1 41007352148
Notes
  • EBA = Einbauanleitung (Installation instructions)
