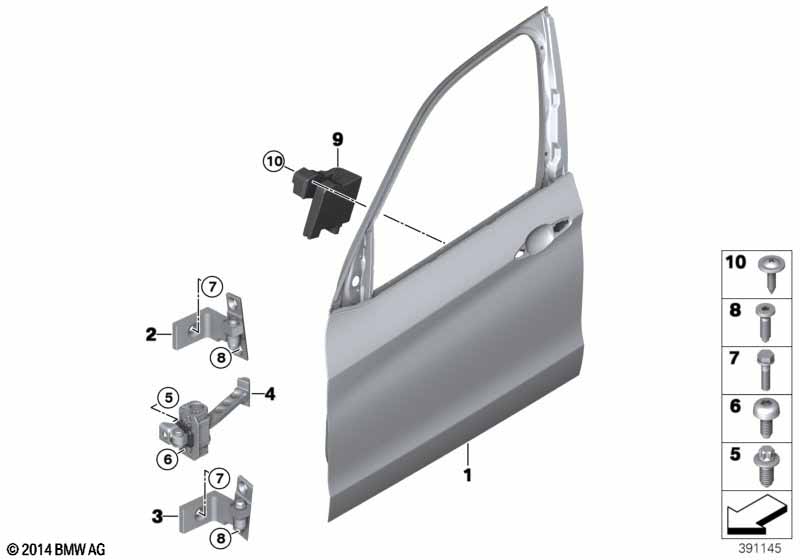

X6 M F86 X6 M Front door-hinge/door brake
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Door front left | 1 | 41517386741 | ||||||
| 01 | Door front right | 1 | 41517386742 | ||||||
| 02 | Left upper front door hinge | 1 | 41007377545 | ||||||
| 02 | Right upper front door hinge | 1 | 41007377546 | ||||||
| 03 | Left lower front door hinge | 1 | 41007377547 | ||||||
| 03 | Right lower front door hinge | 1 | 41007377548 | ||||||
| 04 | Front door brake | 2 | 51217290595 | ||||||
| 05 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | ||||
| 06 | Torx-bolt with washer | ISA M6X12 | 4 | 51226976687 | $0.59 | ||||
| 07 | Hexagon screw with taper | M12X39 | 4 | 01/2018 | 07147184165 | $1.55 | |||
| 07 | Hexagon screw with taper | M12X35 | 4 | 07148499258 | |||||
| 08 | Allen screw with self-centering tip | 8 | 07147290117 |
