X6 M F86 X6 M Rear door - hinge/door brake

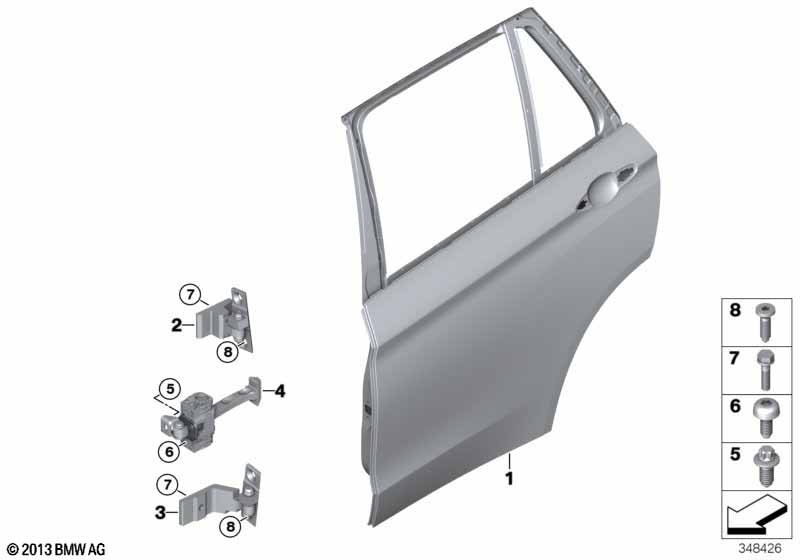

Rear door - hinge/door brake
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Door rear left 1 41517386743
01 Door rear right 1 41517386744
02 Left upper rear door hinge 1 41527200243 $35.79
02 Right upper rear door hinge 1 41527200244 $35.79
03 Left lower rear door hinge 1 41007377549
03 Right lower rear door hinge 1 41007377550
04 Rear door brake 2 51227290593
05 Torx-bolt with washer ASA M8X22 2 07147248303 $0.60
06 Torx-bolt with washer ISA M6X12 4 51226976687 $0.59
07 Hexagon screw with taper M12X39 4 01/2018 07147184165 $1.55
07 Hexagon screw with taper M12X35 4 07148499258
08 Allen screw with self-centering tip 8 07147290117
