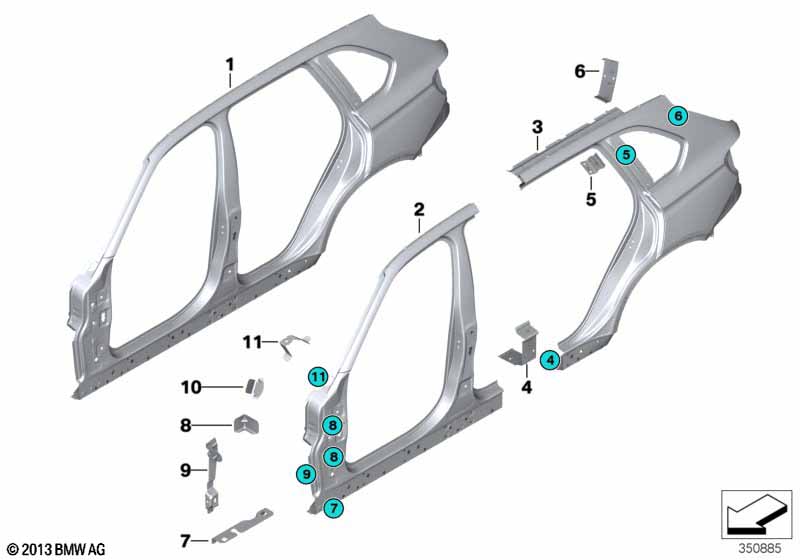

X6 M F86 X6 M Body-side frame

Body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Body-side frame left 1 41217352037
Required for repair
01 Body-side frame right 1 41217352038
Required for repair
-- Positioning aid T-bolt 1 41212460212
-- T-welding stud L=5,4MM 20 41318412638
02 Column B with right rocker panel 1 41217352062
Required for repair
02 Column a with left rocker panel 1 41217352063
Required for repair
-- Positioning aid T-bolt 1 41212460212
-- T-welding stud L=5,4MM 10 41318412638
Performed using adhesive bonding/
riveting repair method.
03 Left rear side panel 1 41217352059
Required for repair
-- Blind rivet N1 3 83190301414 $1.98
-- Blind rivet N3 20 83190301421 $0.31
-- Screw SF PLUS M5X15 3 83190301639 $0.31
-- Cavity protection wax remover 500ML 1 83120390086
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 1 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 38 83192457307
-- Positioning aid T-bolt 1 41212460212
-- Reinforcement plate, universal 1 41217275563
-- Reinforcement plate, rocker panel, left 1 41217374407
-- Reinforcement plate, C-pillar, left 1 41217374423
-- Reinforcement plate, D-pillar, left 1 41217374425
-- T-welding stud L=5,4MM 10 41318412638
03 Right rear side panel 1 41217352060
Required for repair
-- Blind rivet N1 3 83190301414 $1.98
-- Blind rivet N3 20 83190301421 $0.31
-- Screw SF PLUS M5X15 3 83190301639 $0.31
-- Cavity protection wax remover 500ML 1 83120390086
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 1 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 38 83192457307
-- Positioning aid T-bolt 1 41212460212
-- Reinforcement plate, universal 1 41217275563
-- Reinforcement plate, rocker panel, right 1 41217374408
-- Reinforcement plate, C-pillar, right 1 41217374424
-- Reinforcement plate, D-pillar, right 1 41217374426
-- T-welding stud L=5,4MM 10 41318412638
04 Reinforcement plate, rocker panel, left 1 41217374407
04 Reinforcement plate, rocker panel, right 1 41217374408
05 Reinforcement plate, C-pillar, left 1 41217374423
05 Reinforcement plate, C-pillar, right 1 41217374424
06 Reinforcement plate, D-pillar, left 1 41217374425
06 Reinforcement plate, D-pillar, right 1 41217374426
07 Bracket, side panel, entrance left 1 41217195353 $98.37
07 Bracket, side panel, entrance, right 1 41217195354 $98.37
08 Bracket, side panel column A 4 01/2025 41117174365 $1.85
Required for repair
-- Blind rivet N3 8 01/2025 83190301421 $0.31
-- Body adhesive K5 50 ML 4 01/2025 83192158654
-- Cleaner R1 100ML 4 01/2025 83192211217 EBA 2446652
09 Bracket for AFS auxiliary heater 1 41217195249 $85.57
10 Fender bracket 2 41217111355 $2.28
11 Bracket, side panel, top left 1 41007397235
11 Bracket, side panel, top right 1 41007397236
Notes
  • EBA = Einbauanleitung (Installation instructions)
