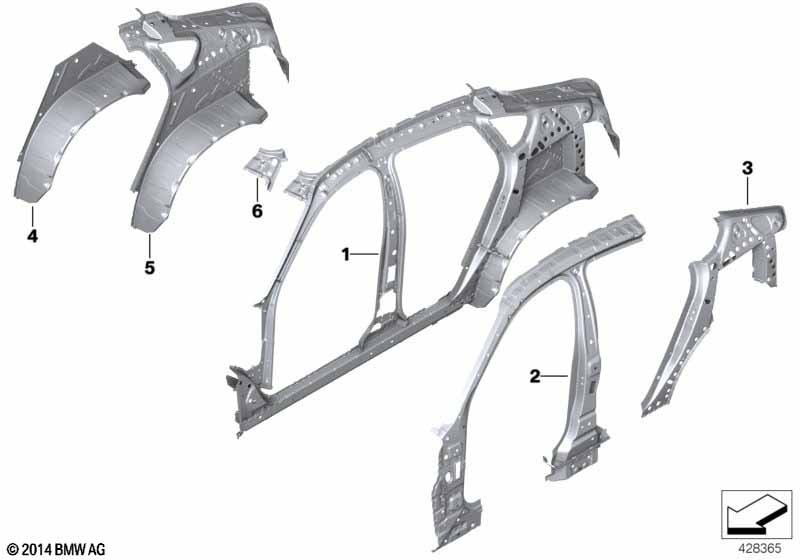

X6 M F86 X6 M Single components for body-side frame
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Left interior side frame | 1 | 41007352067 | ||||||
| 01 | Right interior side frame | 1 | 41007352068 | ||||||
| 02 | Side frame, center left | 1 | 41217352087 | ||||||
| Required for repair | |||||||||
| 02 | Side frame, center right | 1 | 41217352088 | ||||||
| Required for repair | |||||||||
| -- | Hexagon screw with taper | M12X35 | 4 | 07148499258 | |||||
| 03 | Reinforcement, C-pillar, outer left | 1 | 41217352071 | ||||||
| 03 | Reinforcement, C-pillar, outer right | 1 | 41217352072 | NoS | |||||
| 04 | Wheel arch outer rear left | 1 | 41007352075 | ||||||
| 04 | Wheel arch outer rear right | 1 | 41007352076 | ||||||
| 05 | Side frame, inside, rear left | 1 | 41007352095 | ||||||
| 05 | Side frame, inside, rear right | 1 | 41007352096 | NoS | |||||
| 06 | Link, A-pillar/air deflector, left | 1 | 41217395521 | NoS | |||||
| 06 | Link, A-pillar/air deflector, right | 1 | 41217395522 | NoS | |||||
Notes
- NoS = No Stock (Part, central, not in stock.)
