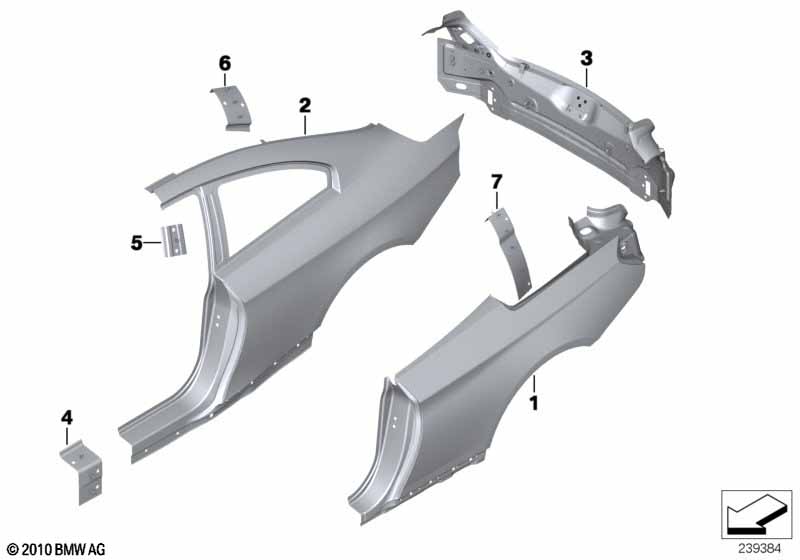

6' F13 650i Side panel/tail trim

Side panel/tail trim
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Performed using adhesive bonding/
riveting repair method.
only applies to
Sidewall, rear right, replace
02 Right rear side panel 1 41217264034
Required for repair
-- Blind rivet N3 19 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 11 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 23 83192457307
-- Reinforcement plate, B-pillar, right 1 41219240050
-- Reinforcement plate, C-pillar, right 1 41219240056
-- Reinforcement plate, rocker panel, right 1 41219240152
Performed using adhesive bonding/
riveting repair method.
only applies to
Sidewall, rear left, replace
02 Left rear side panel 1 41217264033
Required for repair
-- Blind rivet N3 19 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 11 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 23 83192457307
-- Reinforcement plate, B-pillar, left 1 41219240049
-- Reinforcement plate, C-pillar, left 1 41219240055
-- Reinforcement plate, rocker panel, left 1 41219240151
Performed using adhesive bonding/
riveting repair method.
only applies to
Rear rear trim cover
03 Complete tail trim 1 41347263840
Required for repair
-- Blind rivet N3 36 83190301421 $0.31
-- Screw SF PLUS M5X15 10 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Cleaner R1 100ML 1 83192211217 EBA 2446652
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 14 83192457307
04 Reinforcement plate, rocker panel, left 1 41219240151
04 Reinforcement plate, rocker panel, right 1 41219240152
05 Reinforcement plate, B-pillar, left 1 41219240049
05 Reinforcement plate, B-pillar, right 1 41219240050
06 Reinforcement plate, C-pillar, left 1 41219240055
06 Reinforcement plate, C-pillar, right 1 41219240056
Notes
  • EBA = Einbauanleitung (Installation instructions)
