6' F13 650i Floor panel trunk/wheel housing rear

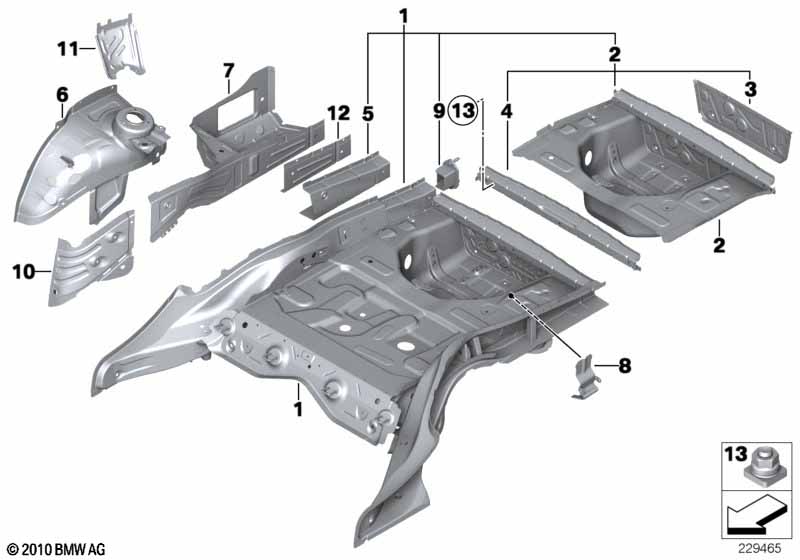

Floor panel trunk/wheel housing rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trunk floor 1 41007263705 +core
only in conjunction with
-- Cover lid 1 41127003126
Required for repair
-- Reinforcement for side member, left 1 41117259555
Required for repair
-- Reinforcement for side member, right 1 41117259556
Required for repair
-- Pipe, fuel ventilation 1 41117284507
Required for repair
-- Bracket for DC/DC converter 1 41007332650
Required for repair
-- Seam sealer 300ML 1 83422409985
Performed using adhesive bonding/
riveting repair method.
only applies to
Luggage compartment floor, center,
replace
02 Luggage compartment floor, rear 1 41127263818
only in conjunction with
-- Cover lid 1 41127003126
Required for repair
-- Bracket for DC/DC converter 1 41007332650
Required for repair
-- Blind rivet N3 25 83190301421 $0.31
-- Body adhesive K5 50 ML 2 83192158654
-- Cleaner R1 100ML 1 83192211217 EBA 2446652
-- Seam sealer 300ML 1 83422409985
03 End piece for cargo area floor 1 41127263763
04 Cross member, trunk floor rear 1 41007262818
05 Left side member extension 1 41117263765
05 Right side member extension 1 41117263766
06 Rear left wheelhouse, inner half 1 41117263821
only in conjunction with
-- Mount, spring strut dome, left 1 41007284783
06 Rear right wheelhouse, inner half 1 41117263822
only in conjunction with
-- Pipe, fuel ventilation 1 41117284507
-- Mount, spring strut dome, right 1 41007284784
07 Extension for rear left wheel well 1 41007263825
07 Extension for rear right wheel well 1 41007263826
08 Bracket activated Carbon container 1 41137263762
09 Mount, bumper 2 41107175173 $43.56
10 End plate, side member, left 1 41117263767
10 End plate, side member, right 1 41117263768
11 Mount, spring strut dome, left 1 41007284783
11 Mount, spring strut dome, right 1 41007284784
12 End plate, side member, left 1 41117284781
12 End plate, side member, right 1 41117284782
13 Earth pin M8X12 X 07147182215
13 Earth pin M6X12 X 41118367249 $1.85 ENDED
13 Earth pin M6X12 X 41248185432
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
  • ENDED = the part has been discontinued (no longer available).
