6' F13 650i Body-side frame

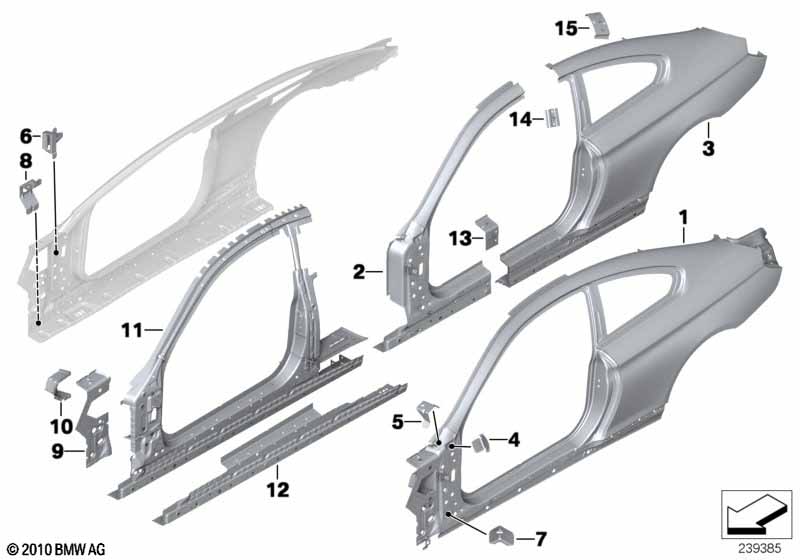

Body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Side frame, exterior, left 1 41217264025
Required for repair
01 Side frame, exterior, right 1 41217264026
Required for repair
-- Seam sealer 300ML 1 83422409985
02 Left exterior column A 1 41217264031
Required for repair
02 Column A exterior right 1 41217264032
Required for repair
-- Seam sealer 300ML 1 83422409985
Performed using adhesive bonding/
riveting repair method.
only applies to
Sidewall, rear left, replace
03 Left rear side panel 1 41217264033
Required for repair
-- Blind rivet N3 19 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 11 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 23 83192457307
-- Reinforcement plate, B-pillar, left 1 41219240049
-- Reinforcement plate, C-pillar, left 1 41219240055
-- Reinforcement plate, rocker panel, left 1 41219240151
Performed using adhesive bonding/
riveting repair method.
only applies to
Sidewall, rear right, replace
03 Right rear side panel 1 41217264034
Required for repair
-- Blind rivet N3 19 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 11 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 23 83192457307
-- Reinforcement plate, B-pillar, right 1 41219240050
-- Reinforcement plate, C-pillar, right 1 41219240056
-- Reinforcement plate, rocker panel, right 1 41219240152
04 Fender bracket 2 41217111355 $2.28
05 Bracket, side panel, top left 1 41217263801
05 Bracket, side panel, top right 1 41217263802
06 Holder, washer fluid reservoir, center 1 41217263803
07 Bracket, side panel column A 4 01/2025 41117174365 $1.85
Required for repair
-- Blind rivet N3 8 01/2025 83190301421 $0.31
-- Body adhesive K5 50 ML 4 01/2025 83192158654
-- Cleaner R1 100ML 4 01/2025 83192211217 EBA 2446652
08 Holder, washer fluid reservoir, lower 1 41217263805
09 Joint, side frame, left 1 41107263699
Required for repair
09 Joint, side frame, right 1 41107263700
Required for repair
-- Blind rivet nut, flat headed M6 1 07147220173
10 Support, A-pillar, left 1 41107263703
10 Support, A-pillar, right 1 41107263704
11 Reinforcement, side frame, left 1 41217264029
Required for repair
11 Reinforcement, side frame, right 1 41217264030
Required for repair
-- Hexagon screw with taper M12X35 2 07148499258
12 Interior left entrance 1 41217274175
12 Interior right entrance 1 41217274176
13 Reinforcement plate, rocker panel, left 1 41219240151
13 Reinforcement plate, rocker panel, right 1 41219240152
14 Reinforcement plate, B-pillar, left 1 41219240049
14 Reinforcement plate, B-pillar, right 1 41219240050
15 Reinforcement plate, C-pillar, left 1 41219240055
15 Reinforcement plate, C-pillar, right 1 41219240056
Notes
  • EBA = Einbauanleitung (Installation instructions)
