6' F12 M6 Vacum control-engine-turbo charger

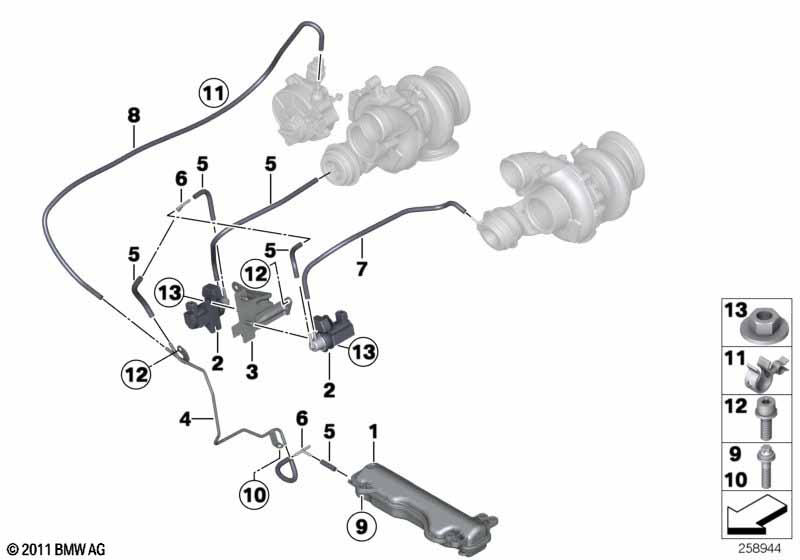

Vacum control-engine-turbo charger
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Vacuum tank 1 11657605374 +core
02 Pressure converter 2 11747626351
03 Holder 1 11657843347
04 Vacuum pipe 1 11657845447
05 Vacuum hose black X 11657847632
06 T-Connector 2 11721439973 $1.07
07 Vacuum hose black 1 11657847293
08 Vacuum hose black 1 11657846864 +core
09 ASA-Bolt M6X25-U1-8.8 3 07/2017 07129907263 ENDED
10 ASA-Bolt M6X25-U1-8.8 1 07/2017 07129907263 ENDED
11 Hose clamp 3 13907506771 $1.73
12 Isa screw with washer M6X18-U1-8.8 3 07129904707 $0.96
13 Hex nut BM6-8-ZNNIV SI 4 07129905411 $0.38
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
