MINI Clubman R55 Cooper Sports brake "John Cooper Works"

Sports brake
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
  MINI 5 Star Rocket 93 light-alloy wheel
  and
  MINI 5 Star Rocket 93 light-alloy wheel
  and
  MINI alloy wheel 7-hole 81
  and
  MINI LA wheel, 8-spoke 82
  and
  MINI LA wheel, 5-star 16"
  and
  MINI LA wheel, X-Lite 84
and
  15" WTW 7 Hole Spoke R81
  and
  15" LAW Star Spoke R86
  and
  15" WKR Star Spoke R86
  and
  16" WKR Double Spoke R88
  and
  16" WKR X-Lite Styling R84
  and
  16" WTW 7 Spoke R92
  and
  15" WTW 8 Spoke R82
  and
  16" LAW Cross Spoke R90
  and
  15" WKR steel wheel 12
  and
  16" LAW Double Spoke R88

S2CLA=No

S2C3A=No

S306A=No

S367A=No

S368A=No

S385A=No

SZD2A=No

SZPSA=No

SZQSA=No

SZQTA=No

SZQUA=No

SZQWA=No

SZQXA=No

SZV1A=No

SZW0A=No

SZXMA=No

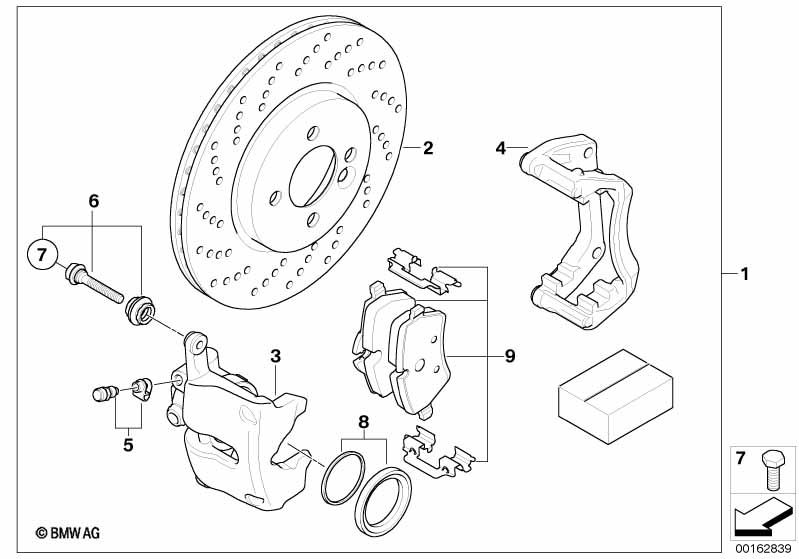

01 Sports brake retrofit kit J. COOPER WORKS 1 34110428914 $1360.00 ENDED, +core, EBA 0397293, EBA 0397588
not suitable for
-- Compact spare wheel, steel, black 31/2JX15 ET:35 X 36111509164 $120.00 +core
-- Steel rim schwarz 51/2JX15 ET:45 X 36111511414 $57.44 +core
-- Steel rim silber 51/2JX16 ET:45 X 36116764346 $69.93 +core
-- Gloss-turned light alloy rim 7JX18 ET:52 X 36116774581 $387.95
02 Brake disc ventilated, perforated 294X22 2 34116777826 $109.00
03 Caliper housing left 1 09/2006 34116779759 $311.29 ENDED, +core
03 Caliper housing left 1 34116778335 $254.71
03 Caliper housing right 1 09/2006 34116779760 $311.29 ENDED
03 Caliper housing right 1 34116778336 $254.71
04 Calliper carrier left 1 11/2006 34206779761 $135.95 ENDED
04 Calliper carrier left 1 34206779729 $121.04
04 Calliper carrier right 1 11/2006 34206779762 $135.95 ENDED
04 Calliper carrier right 1 34206779730 $121.04
05 Repair kit ventilation valve 2 34116768188 $6.52
06 Repair kit bellows 4 34116768189 $19.48
07 Hex bolt M8 4 34116768190 $3.12
08 Repair set brake caliper 2 34116769277 $25.42
09 Repair kit, brake pads asbestos-free 1 34116778320 $122.65
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
