MINI Cabrio R57 Cooper Single components for rear spring strut

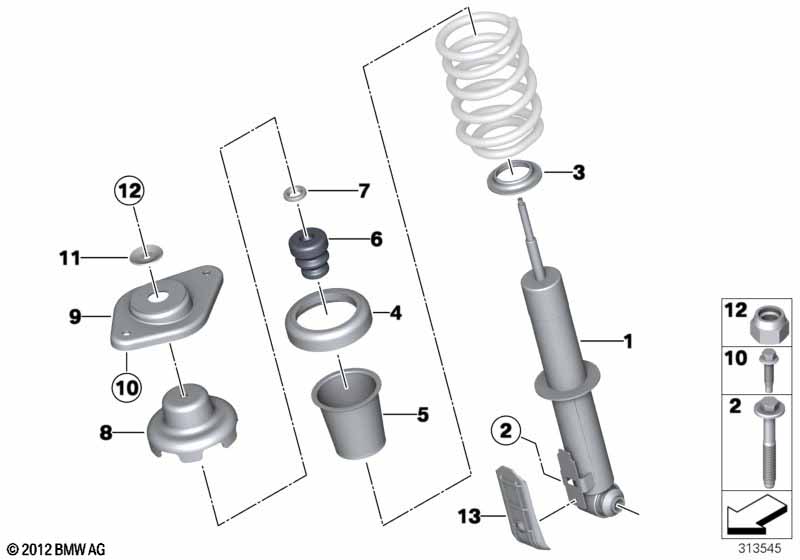

Single components for rear spring strut
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i The following part is absolutely vital
for strut replacements:
Additional shock absorber, rear
01 Spring strut, rear 2 06/2011 33526853969
only in conjunction with
-- Stone-chip guard 2 06/2011 33506851235
Required for repair
-- Screw self-tapping M14X1.5X105 2 06/2011 33326771715 $5.30
-- Self-locking hex nut M10X1-8 ZNS3 2 06/2011 33526773882 $1.03
01 Spring strut, rear 2 06/2011 33526853969
Required for repair
-- Screw self-tapping M14X1.5X105 2 06/2011 33326771715 $5.30
-- Self-locking hex nut M10X1-8 ZNS3 2 06/2011 33526773882 $1.03
For vehicles with
Sports suspension settings

S226A=Yes
01 Spring strut, rear 2 06/2011 33526853971
only in conjunction with
-- Stone-chip guard 2 06/2011 33506851235
Required for repair
-- Screw self-tapping M14X1.5X105 2 06/2011 33326771715 $5.30
-- Self-locking hex nut M10X1-8 ZNS3 2 06/2011 33526773882 $1.03
01 Spring strut, rear 2 06/2011 33526853971
Required for repair
-- Screw self-tapping M14X1.5X105 2 06/2011 33326771715 $5.30
-- Self-locking hex nut M10X1-8 ZNS3 2 06/2011 33526773882 $1.03
02 Screw self-tapping M14X1.5X105 2 33326771715 $5.30
03 Spring pad lower 2 33506772790 $2.46
04 Spring pad upper 2 33531495714 $8.03
05 Protection tube 2 33531507254 $3.33
06 Auxiliary shock absorber, rear 2 33536789563 $14.87
07 Ring f piston rod 2 33506778830 $0.98
08 Upper spring plate 2 33531508011 $7.49
09 Left guide support 1 33506789027 $87.28
09 Right guide support 1 33506789028 $87.28
10 Screw self-tapping M10X1,5X40 4 33526757104 $1.79
11 Plate ZNFE SI 2 33526776759 $1.95
12 Self-locking hex nut M10X1-8 ZNS3 2 33526773882 $1.03
13 Stone-chip guard 2 06/2011 33506778572 $44.79
13 Stone-chip guard 2 06/2011 33506851235
